Project Description

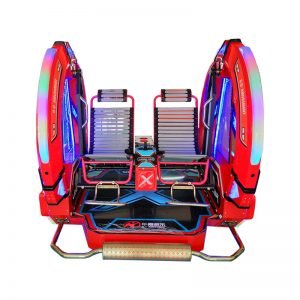

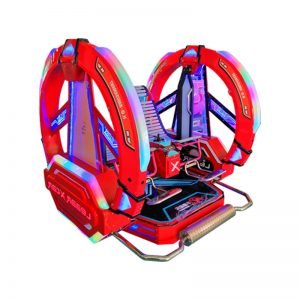

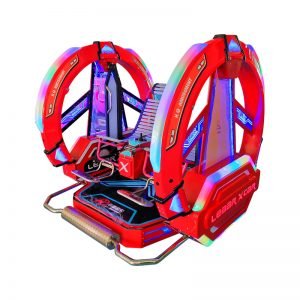

Happy Swing 360 Happy Car

Parameter

  • 360 happy Car Product Size:1730*1660*1600
  • Battery life: 7-8h
  • Battery: 12V-40A\4 pcs
  •  Players: 2 people

360 degree Swing Happy Car Amusement Park Playground kiddie ride

Introduction

  • Independent research and development of four-in-one motherboard. STM32 single-chip microcomputer control
  • The best global brand wheels recognized by the market are durable
  • Industry recognized big-brand brushless motor wheels are more durable and stable
  • Baking paint blister acrylic + silver powder durable and not easy to fade
  • Imported Omron rocker controls swinging front and back left and right
  • Suitable for the crowd: children, elderly, young people, couples
  • 360 Hppy Car Suitable venues: parks, shopping malls, leisure squares, attractions, amusement parks, communities, resorts, large commercial complexes.

Battery power state display

When the display panel indicates 100%,it means full battery power, when the display panel shows “low battery, please charge” pleaase charge it in time, otherwise the battery will power loss, or damage caused by the battery charge and can not recharge.

How to charge the battery

Please Plug the charger circular plug into the left round port on the back of machine and tighten,as picture shows:Notes:Please make sure plug the charge port first,and then connect another side with 220V power supply,When the charge power light indicate red light means normal charging.If the indicator shows Green color,means fully charged or no charging

How to replace the battery

For moonwalk 360 car .If battery need to be changed , please choose the storage battery which is in suitable capacity and the same specification .First step, close the power, then open the battery box which under the chair with machine-equipped key . As following picture, please take out the red dot line and blue dot line which is connected to the battery.

The red line means positive pole, the blue one means negative pole, then take out the battery. Please install the batteries following picture 2, Make sure the red line connect to the red dot on battery, the black line connect to the blue dot on battery.pls use a red line to connect the two batteries.

One side of the red line, pls connect to blue dot on battery, the other side of the red line, pls connect to red dot on the other battery. When battery replacing is finished, please check the connecting line is correct or not. If all is ok, then lock the battery box
