Project Description

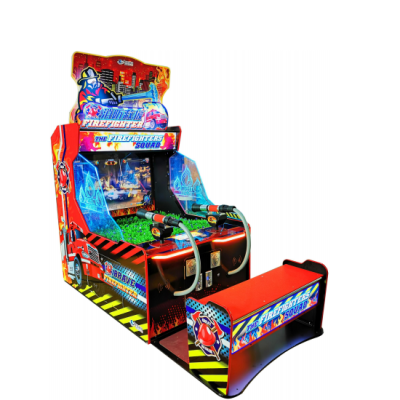

Brave Firefighter 2P Arcade Water Shooting Machine
Brief Introduction Of Game
Type: Water shooting game
How to Play：
Insert coins, and press the start button, choose the scenes, the game begins.
Press the button and move the water gun to put out the fire in the screen.
And you can turn the nozzle to choose the tools.

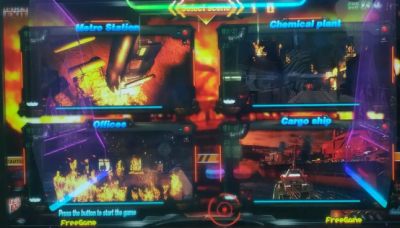

There are four scenes
Metro Station / Chemical plant / Office / Cargo Ship
Dimension And Technical Parameter
Voltage: AC220V±5% 50Hz or AC 110V±5% (or make the reference with the mark)；
Power：1200 W；
Dimension：W1040*D2210*H2200（mm）;
Weight：About：200 kg
THE TEMPERATURE（INDOOR） ：-10~+40℃
- HUMIDITY：≤90%;
- PRESSURE：86Pa~106Pa
Application range:amusement park、Family entertainment center、game center、shopping mall
Parts list
In order to use the machine normally , Please check it carefully after you open the package box to see whether it have the following items:
A main machine;
A set of repair parts, list as the below
|
No. |
Parts name | Specification | QTY | Picture | Remark | |
|---|---|---|---|---|---|---|
| 1 | Power line | 1．8m | 1 | PC |  |
|
| 2 | Fuse Tube | 5XΦ20mm | 2 | PC |  |
10A |
| 3 | User Manual | 1 | PC |  |
||
| 4 | Key of Coin box | AH78 | 2 | PC |  |
|
| 5 | Key of maintenance
door |
AH57 | 3 | PC | |
Front door and back door |

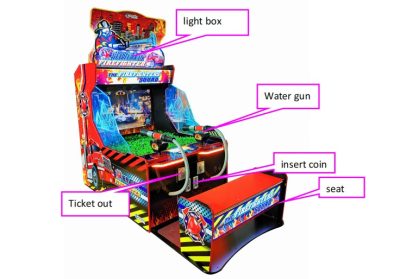

The Structure Of Machine
Installation And Moving
This machine only can be use in the indoor, outdoor is prohibited； It will affect the function if you use it outdoor.

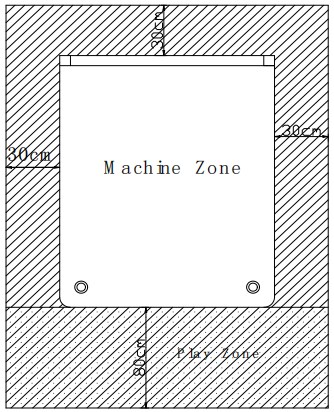

Range for placement：The machine should be placed as the following range, enough space can make it cool down better.
When moving it , you must pay attention to the following：
- You must turn off the power and pull the power connection outbefore moving.
- If the caster can not move, please change the castors.
- Any moving, turning and transport artificial random could damage the device and destroyed the mechanical properties .
- Confirmed the process of moving , flipping and transportation meet the manufacturers requirements.

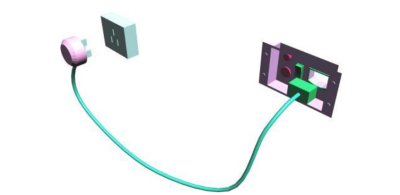

Method Of Power Connection
Look-out：
Power cord can not be pressed by heavy objects, which would easily cause short circuit and may lead to serious fires.
When you pull the power cord out form the socket, you should seize the plug prefer grasp the wire.
Can not pull the plug directly with wet hands.
Can not force stretched and twisted the power cord, and the power cord can not be expose or near the object which is in high temperatures.
The power cord can not be kicked or contact easily.
Must use the correct voltage and fuse (See the specification)
