Project Description

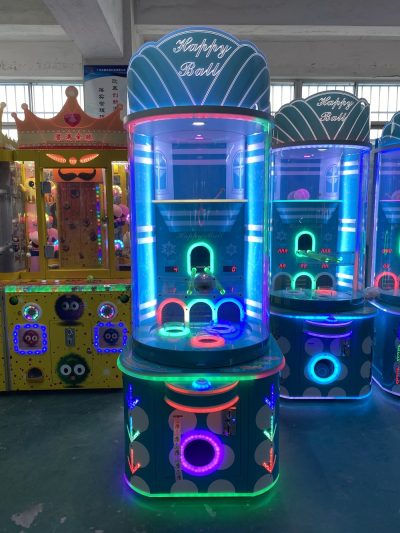

Happy Ball Ball Drop Arcade Machine

Game introduction

  • The newly developed game machine with self-developed gifts and tickets hasa highly efficient and stable program;
  • Unique design, novel style and dazzling lighting;
  • Hold thetwo poles to control the game, the fun is super;
  • The capsule toys are placed from the top of the machine and has a large space capacity;
  • Game entertainment combined with gift awards, playability is higher;
  • Game difficulty and profitare controllable, cost-effective;
  • The venue must have a profit-making machine that can be placed in children’s playgrounds, videoarcades, shopping malls and other venues.

Machine specifications and technical parameters

  • working voltage:AC 220V   50/60HZ
  • maximum power: 400W
  • weight:120KG
  • shape size:W1020*D720*H2004(mm)
  • The machine can be placed in the largest size of the capsule egg: 120mm, the smallest size: 90mm
  • This machine can accommodate up to 40 twisted eggs (120mm)
  • Application range:amusement parkFamily entertainment center、game center、shopping mall

Turntable speed description

  • On the setting button, you can set the speed of the turntable to slow down in the next round of the specific round when the player has played a certain number of rounds, which will reduce the difficulty of the game.
  • If the player is not yet get the capsule egg, the speed of the turntable will slow down again in the next round.
  • By analogy, the speed of the turntable is slowed down step by step, and the speed has been reduced to the lowest level after the fifth round, and then the speed is kept unchanged;
  • Until the next game after the player has got a reward, the speed of the turntable will immediately return to the highest speed, which will increase the difficulty of the game.

2022 Best Ball Drop Arcade Machine For Sale|China Arcade Ticket Games For Sale

 Gameplay

  • After the coin is inserted, press the start button to enter the game.
  • The ball exits from the ball mouth and slides on the two catchers.
  • Move thepolesto the left and right to control the front, rear, left and right direction of the ball.
  • In the specified time, the ball successfully fell into the turntable to get a capsule egg, or slid into the front holes to get some tickets.

Function setting button operation method

  • In standby mode, press the “Set” button to enter the function settings and press again to exit the settings.
  • In the setting mode, press the “Page” button to cycle through the selection item number. (P01-P07setting item cyclicincrement key. See the table below)
  • Press the “+” and “-” buttonto change the setting item function parameter value. (Range value cyclic increment key. See the table below)

Function settings table)

Setting item

Function Description Range value Factory default

P01

Number of coins per game 1~9 2
P02 Game time(second) 5~240

25

P03 When the player reaches a certain number of rounds, the turntable speed starts to slow down. 1~100

40

P04

Number of lottery tickets on the left side of the hole 0~200 10
P05 Number of lottery tickets in the middle hole 0~200

15

P06

Number of lottery tickets on the right side of the hole 0~200 10
P07 Power-down memory(0: clear 1: memory) 0~1

0
