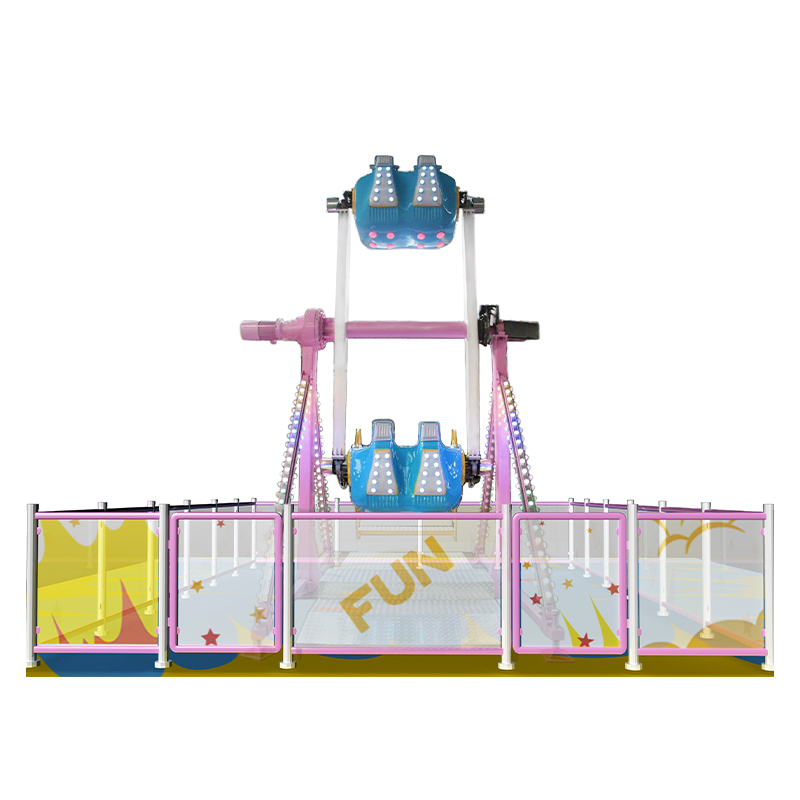

Space Travel Carnival Ride For Sale
Parameter
Crew: 4 people
Power: 5.5kW
Voltage: 380V
Maximum turning diameter: 5.8m
Height: 6.8m
Operating height: 6.3m
Floor area: 29.5m×11.5m
Operating speed: 9.8rpm
Theoretical passenger capacity: 48PPH
Equipment grade: B grade
The design service life of the whole machine is 15 years
Application range:amusement park、playground、theme park.
Product Description
Traveling in space is a sightseeing car amusement facility. When the main arm of the equipment rotates, it drives the cockpit to rotate. The cockpit is hinged and can swing freely during operation. Passengers sit in the cockpit. When the speed of the main arm changes, the cockpit can swing freely or even turn around under the action of centrifugal force due to the eccentricity of the cockpit. Passengers do not know what state they will be in at the next moment when playing, which brings passengers an unknown fun
Features
1. Mobile equipment, with its own enlarged steel structure foundation, no need for fixed foundation installation.
2. The high-power motor cooperates with the planetary reducer, which can make the equipment more easily complete the predetermined speed change.
3. The cockpit brake adopts pneumatic brake, and the brake is softer.
4. The restraint system of the pressure bar adopts double independent design, and the reliability of the pressure bar is stronger.
5. The seat belt adopts four-point seat belt, which brings all-round protection to passengers.
Concept Of Design
Referring to the structure of the astronaut’s training cabin, the design can always drive the rotation of the cockpit due to the inertia brought about by the speed change. This rotation usually brings uncertainty. Different time and different loads will bring different motion patterns. When the cockpit rotates rapidly, passengers can feel completely free from the shackles of gravity
