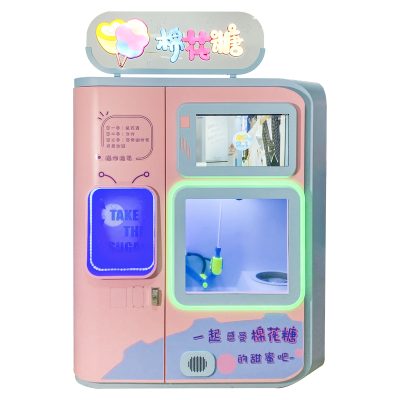

Size:1380*726*2058

Voltage:AC220V 50HZ

Power:2500

Weight:320

Use time for 1 sugar:90-110s

Single sugar consumption:~40g

Water consumption: 25 candies/L

Sugar consumption: 25-30 candies/KG

Use environment: Indoor, 5-40 degrees Celsius

Patterns: 30 types

Language:21

Add tail wire collection device

With LED lighting topper

Application range:amusement park、Family entertainment center、game center、shopping mall

Select the pattern which you like at the screen

Insert the Paper money or coin to start the making

Wait for making stop and the candy out door open

Take out the cotton candy

The take out door closed, Finish

Fully Automatic sell and making. No need the staff to assist.Decrease the labor cost.

With the big size touch screen which support to the client to do the self purchase and support to the the advertise.

With GPS positioning function, multiple machines are placed for easy management; With Phone APP function

Closed cotton candy produce space which ensure the clean and safe.

The four-axis manipulator is fully produced, and the high-speed operation is completed in 120 seconds.

New burner: with humidifier, moisture-proof, increase equipment life; with burner caramel cleaning mode, automatically remove carbon deposits.

Double door setup with the automatic candy out door.

Low material waste, 40G suger for 1 complete cotton candy

Such as for Event, you can take the cotton candy as the free prize which lower your activity prize cost.

For the store outside, it will be attractive many child and couple come.It is not only a cotton vending machine but also the mini cotton candy manufacture machine. Except to provide the cotton candy, the manufacture process are also help to attractive more and more clients which increase more potential buyers.when they are wait for the cotton candy, they may come into the store to purchase some items

For the Street Station, all of the girls and boys will outside for shopping. So it is a good machine which support them to purchase the candy

For the Rent, easy moving steel and lower material cost is very suitable for it.

As the low material lost machine, the automatic cotton candy vending machine good revenue. Such as the large city in China of Shenzhen or Shanghai, one unit cotton candy price is RMB30, it is near USD4 to USD5 per unit. So if it is sell around 100 units per day, the revenue for 1 month(30 days) is from USD12000 to USD15000. So at the first month, you will get back the investment and from the second month, you will get the profit. (as sheet)Because of such good revenue feedback, now more and more this cotton candy machine used at the shopping mall, theme park, game center, water park and all kinds of the entertainment and leisure place.

The principle of making cotton candy is to use white sugar (about 150 degrees or more) and then melt the white sugar into bubbles through a high-speed rotating centrifuge. The liquid sugar was thrown through the micro-holes on the centrifuge. After cooling into filaments. The cotton candy shell is rotated, and these fine candy are wound into the center of the marshmallows, which are not fluffy that are rotated at a high speed in the outer shell. Once again, the marshmallows are wound into the center with the cotton candy as the center, and the cotton candy are wound into particles. It turns into cotton candy.

From USD700 to USD8500

vintage cotton candy machine：USD700-2500

Semi-automatic cotton candy machine：USD3500-5500

Automatic cotton candy machine:USD7000-9000

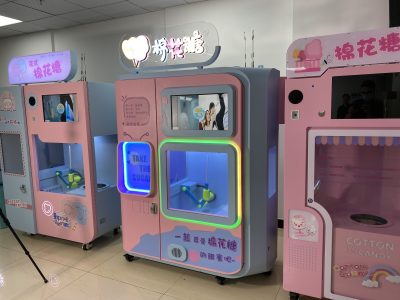

Yuto Games is the professional manufacturer of cotton candy machine . The fully automatic cotton candy machine developed by our company is exquisite in appearance, powerful in function and stable in performance.With highly profitable.

This product is suitable for operation in shopping malls, amusement parks, cinemas and other venues. Customers can customize their own styles according to the demand. welcome the inquiry.

The sugar must be sucrose, with a particle size of 2-3mm; paper stick: food-grade base paper, food-grade glue.

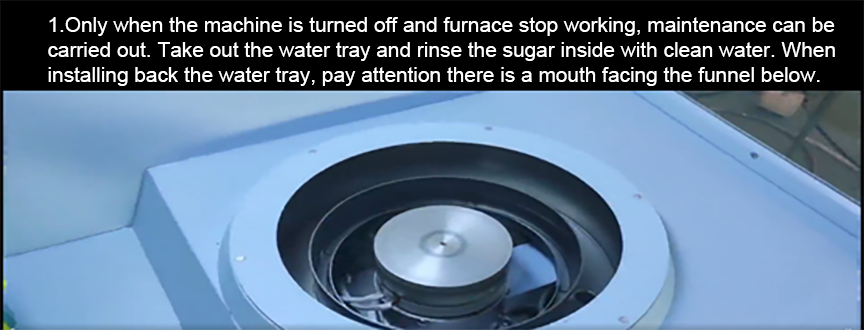

Only when the machine is turned off and furnace stop working, maintenance can be carried out. Take out the water tray and rinse the sugar inside with clean water. When installing back the water tray, pay attention there is a mouth facing the funnel below.

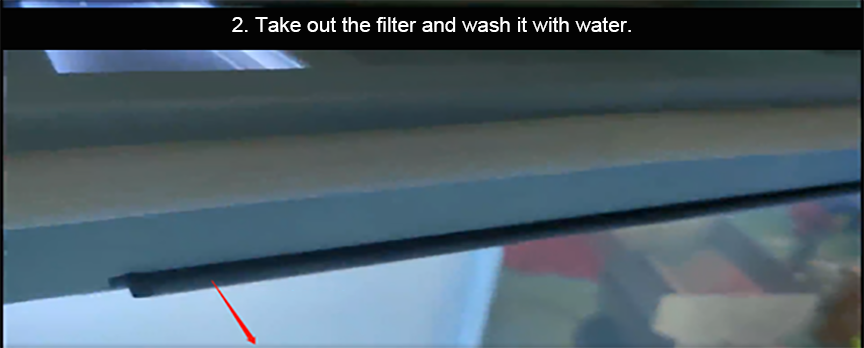

Take out the filter and wash it with water.

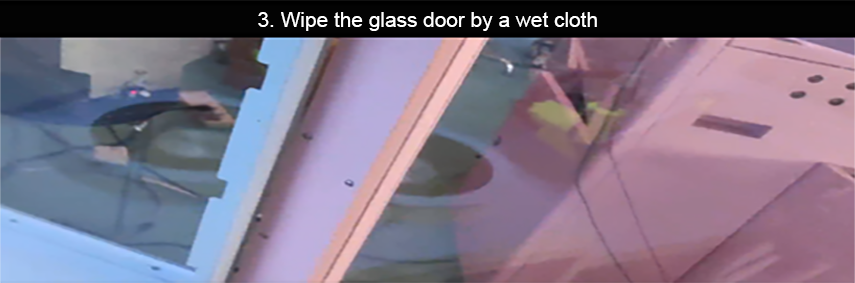

Wipe the glass door by a wet cloth

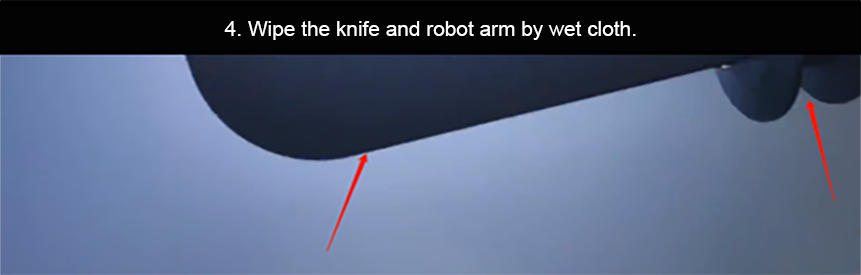

Wipe the knife and robot arm by wet cloth.

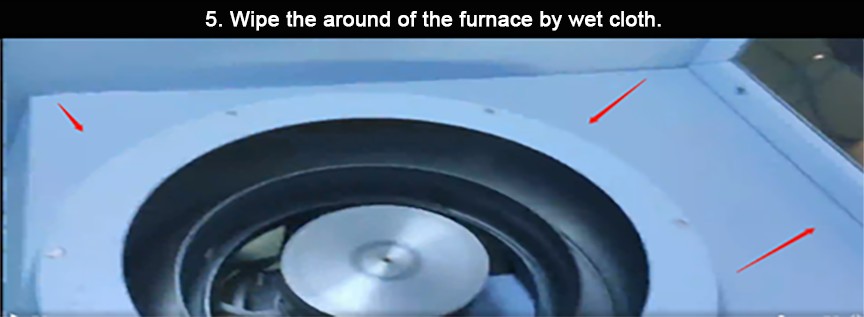

Wipe the around of the furnace by wet cloth.

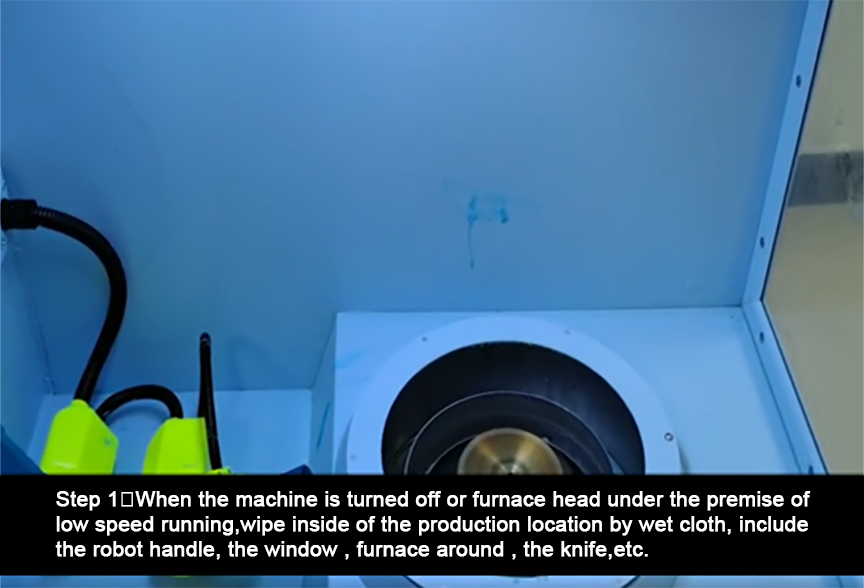

Step 1：When the machine is turned off or furnace head under the premise of low speed running,wipe inside of the production location by wet cloth, include the robot handle, the window , furnace around , the knife,etc.

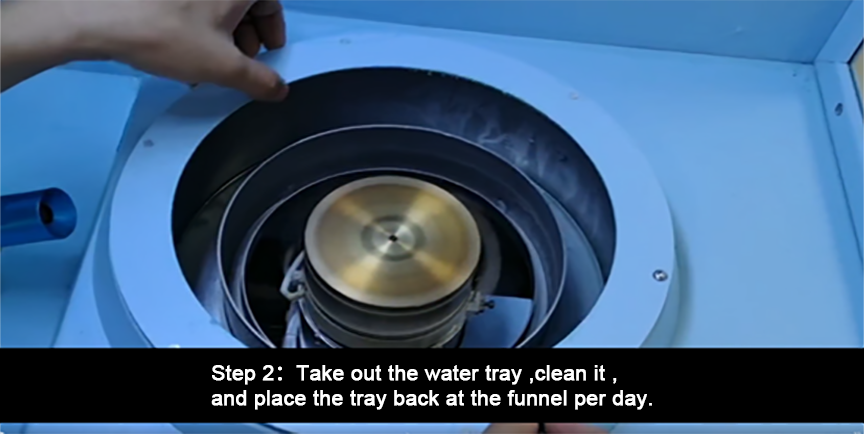

Step 2：Take out the water tray ,clean it ,and place the tray back at the funnel per day.

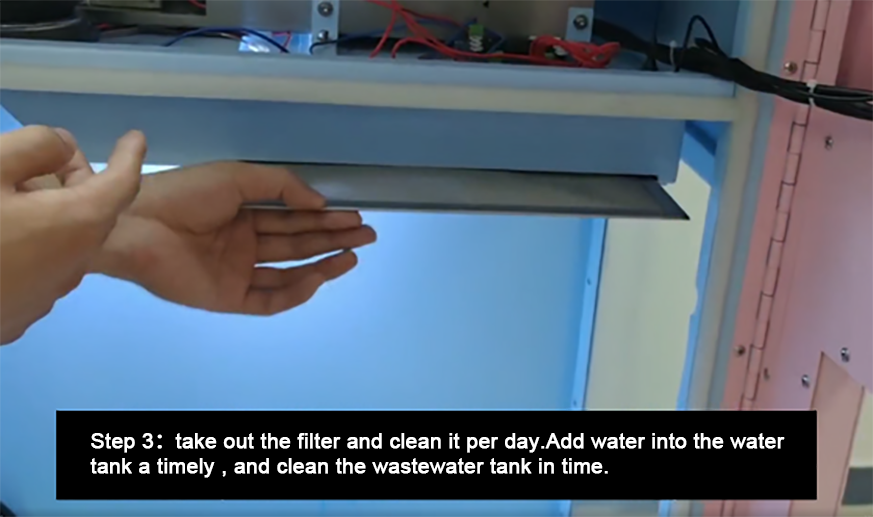

Step 3：take out the filter and clean it per day.Add water into the water tank a timely , and clean the wastewater tank in time.

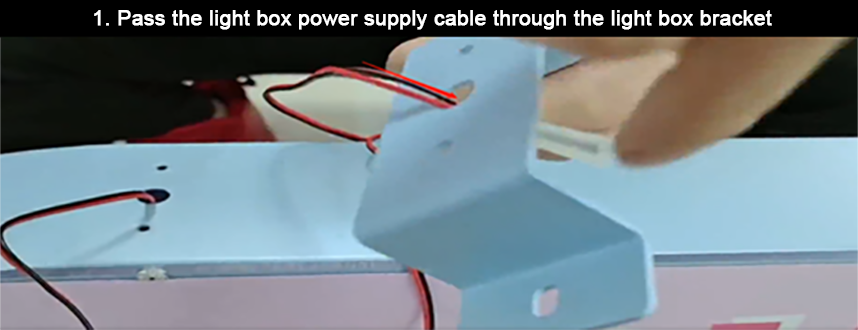

Pass the light box power supply cable through the light box bracket

Install two fix bracket on the left and right sides (remember to install the negative)

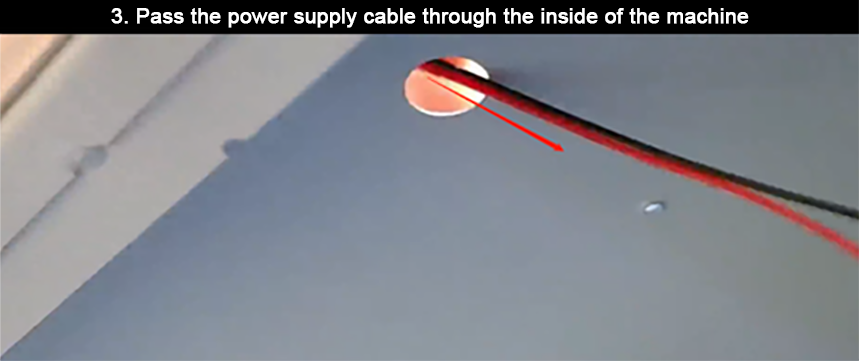

Pass the power supply cable through the inside of the machine

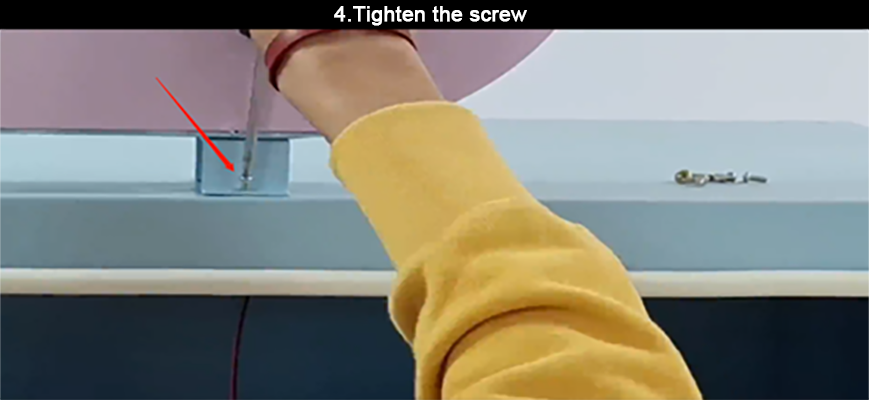

Tighten the screw

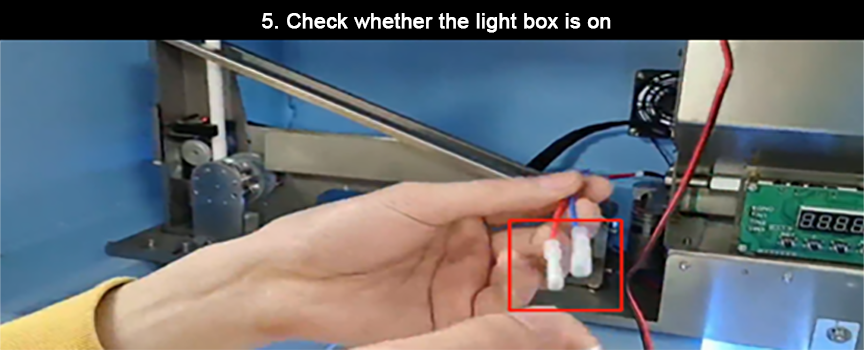

Check whether the light box is on

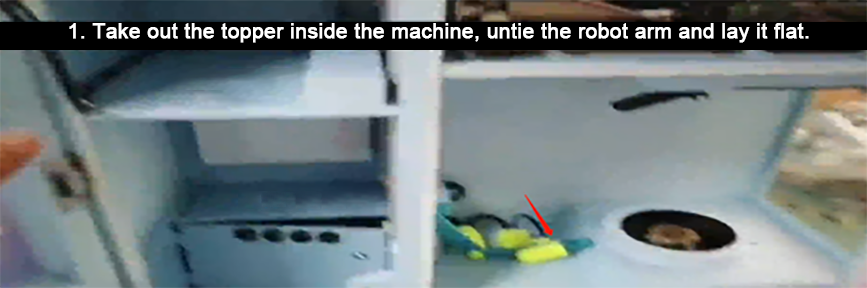

Take out the topper inside the machine, untie the robot arm and lay it flat.

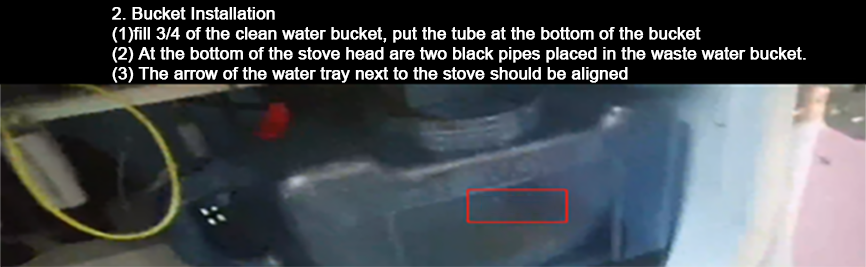

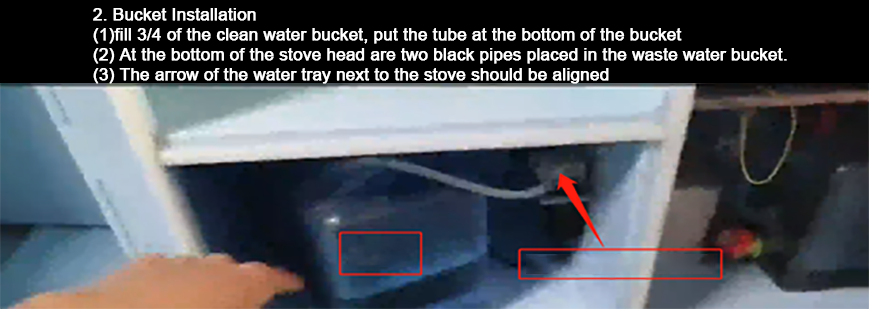

Bucket Installation

• fill 3/4 of the clean water bucket, put the tube at the bottom of the bucket
• At the bottom of the stove head are two black pipes placed in the waste water bucket.
• The arrow of the water tray next to the stove should be aligned

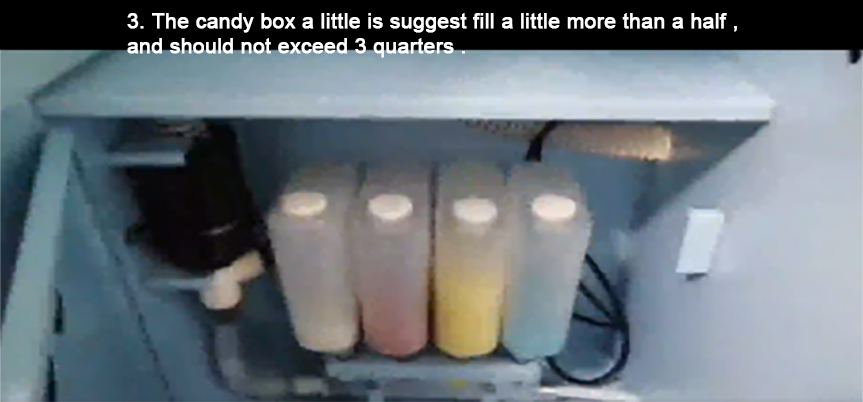

The candy box a little is suggest fill a little more than a half , and should not exceed 3 quarters .

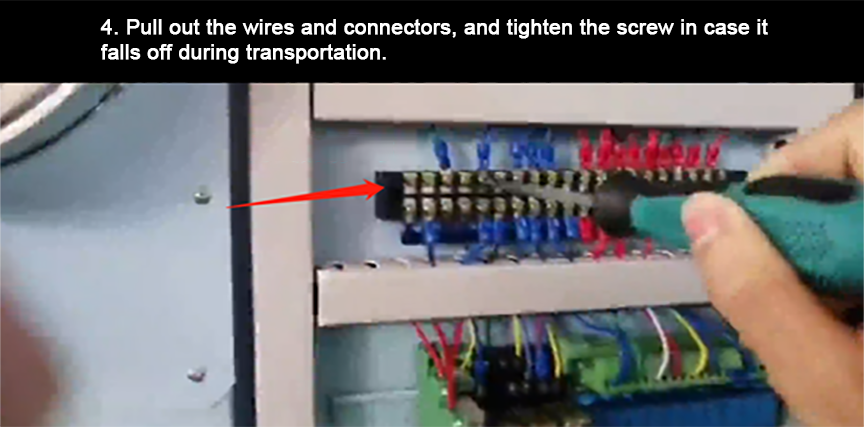

Pull out the wires and connectors, and tighten the screw in case it  falls off during transportation.

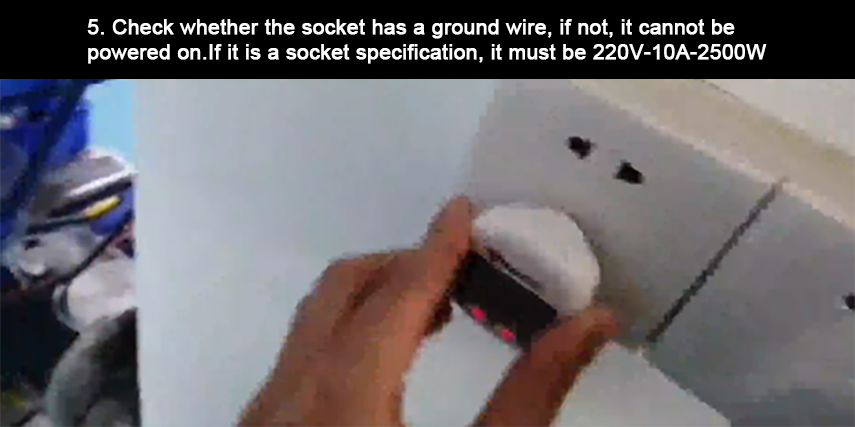

Check whether the socket has a ground wire, if not, it cannot be powered on.If it is a socket specification, it must be 220V-10A-2500W

Power on – turn on the UPS – enter the background to start

• Account: admin
• Password: 123456

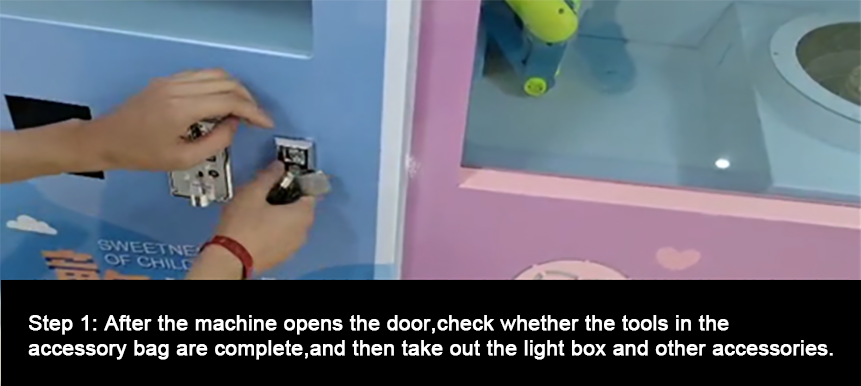

Step 1: After the machine opens the door,check whether the tools in the accessory bag are complete,and then take out the light box and other accessories.

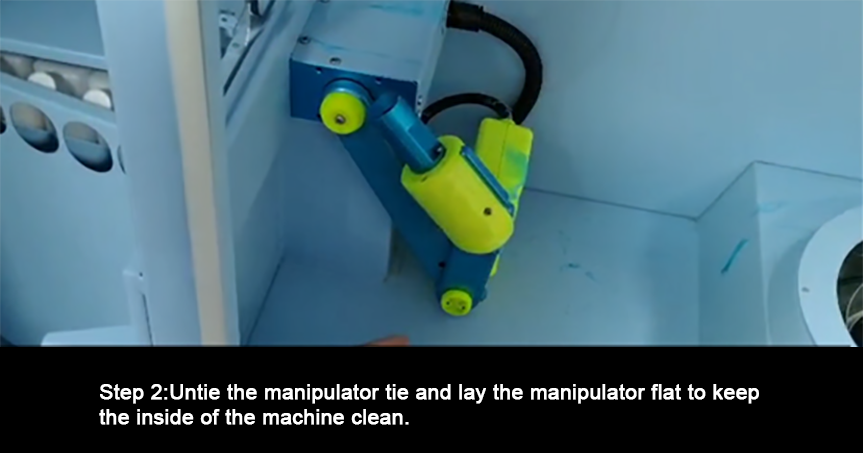

Step 2:Untie the manipulator tie and lay the manipulator flat to keep the inside of the machine clean.

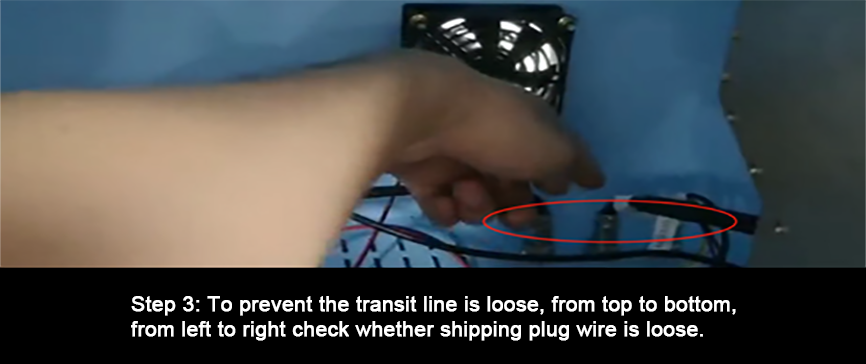

Step 3: To prevent the transit line is loose, from top to bottom, from left to right check whether shipping plug wire is loose.

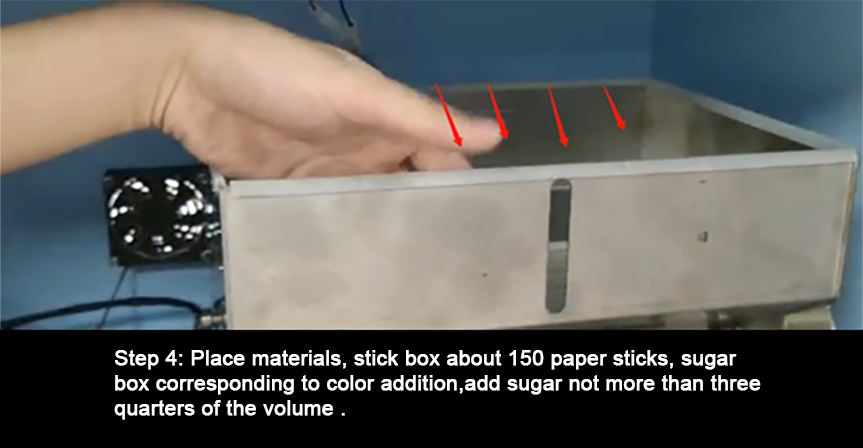

Step 4: Place materials, stick box about 150 paper sticks, sugar box corresponding to color addition,add sugar not more than three quarters of the volume .

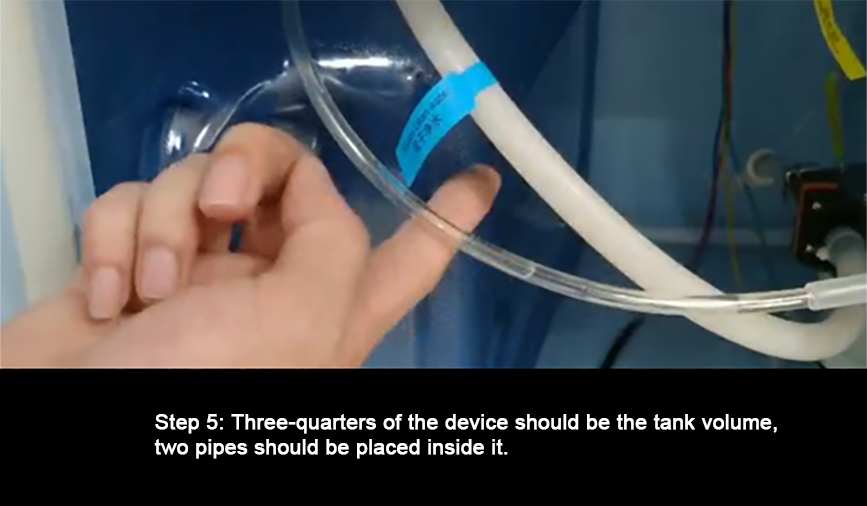

Step 5: Three-quarters of the device should be the tank volume, two pipes should be placed inside it.

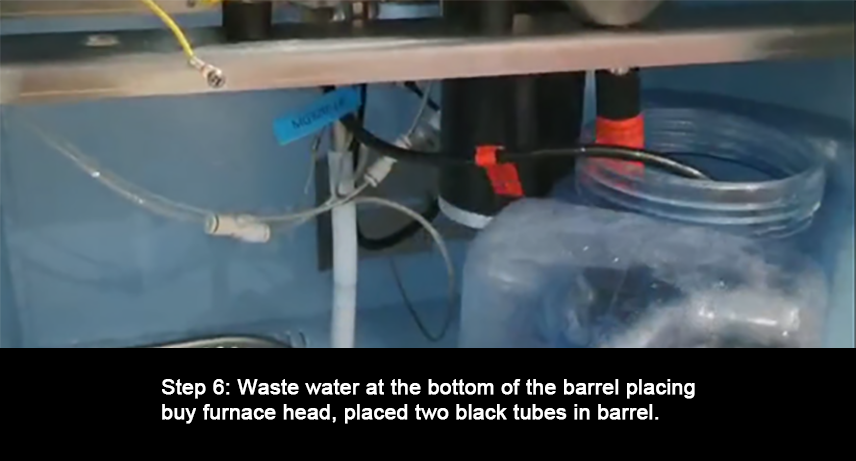

Step 6: Waste water at the bottom of the barrel placing buy furnace head, placed two black tubes in barrel.

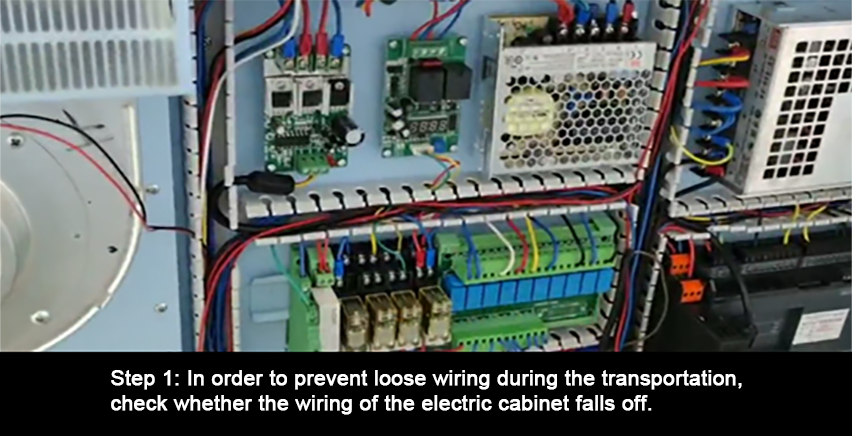

Step 1: In order to prevent loose wiring during the transportation, check whether the wiring of the electric cabinet falls off.

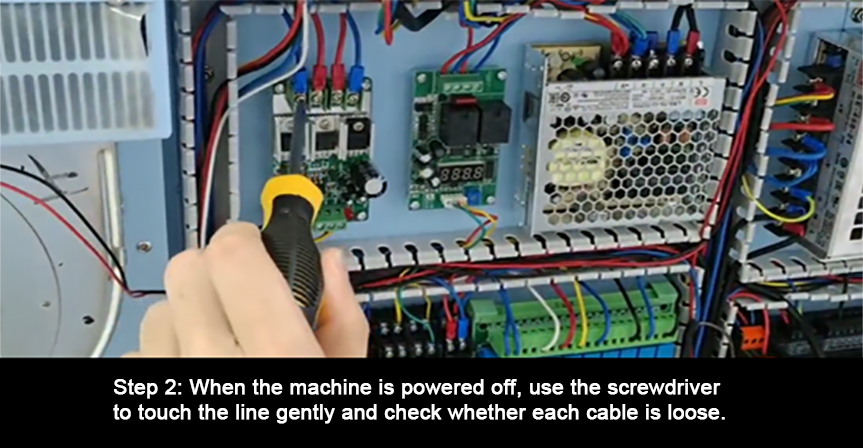

Step 2: When the machine is powered off, use the screwdriver to touch the line gently and check whether each cable is loose.

Step 3: Use a phase detector to check whether there is ground wire connected to the power supply or the plug in the machine position.

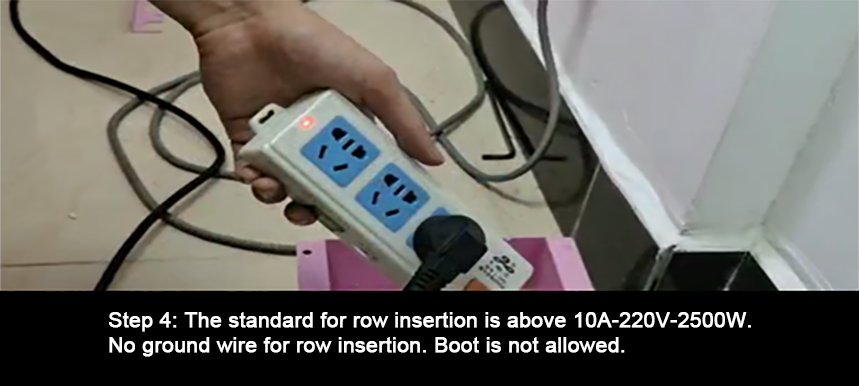

Step 4: The standard for row insertion is above 10A-220V-2500W. No ground wire for row insertion. Boot is not allowed.

Step 1: After the machine is powered on, turn on the UPS of the electric cabinet and set the time of time-controlled switch.

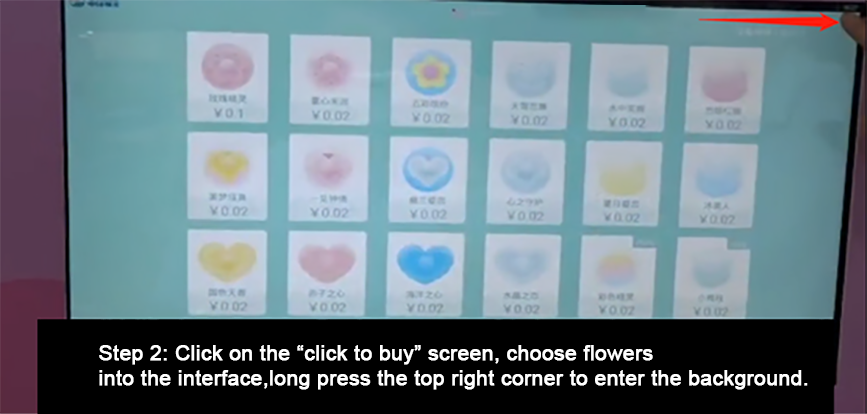

Step 2: Click on the “click to buy” screen, choose flowers into the interface,long press the top right corner to enter the background.

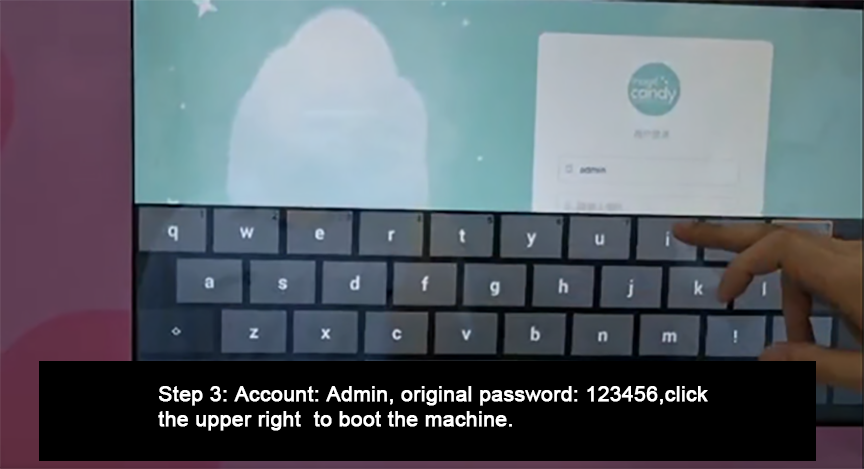

Step 3: Account: Admin, original password: 123456,click the upper right  to boot the machine.

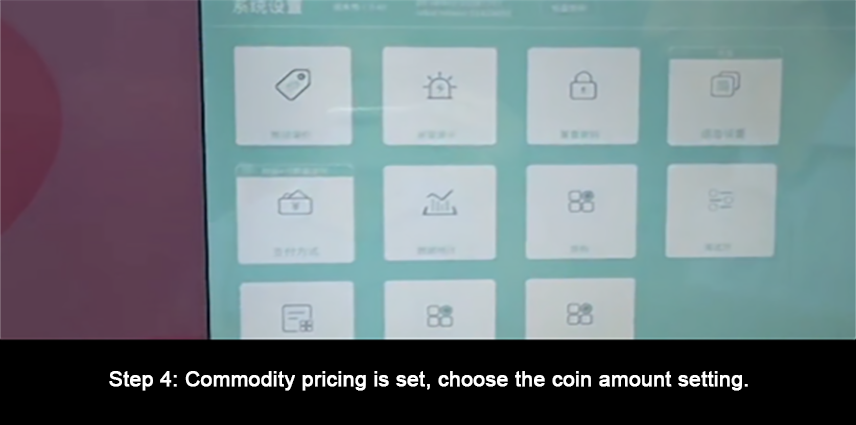

Step 4: Commodity pricing is set, choose the coin amount setting.

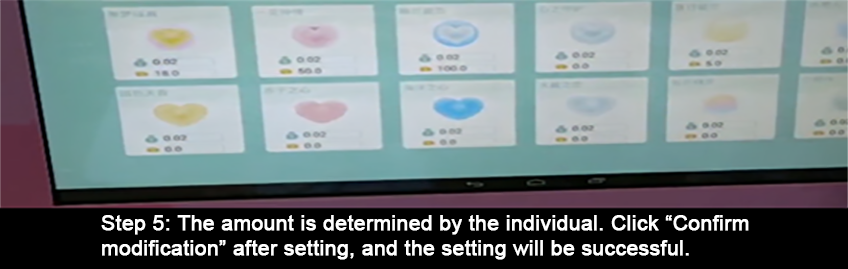

Step 5: The amount is determined by the individual. Click “Confirm modification” after setting, and the setting will be successful.

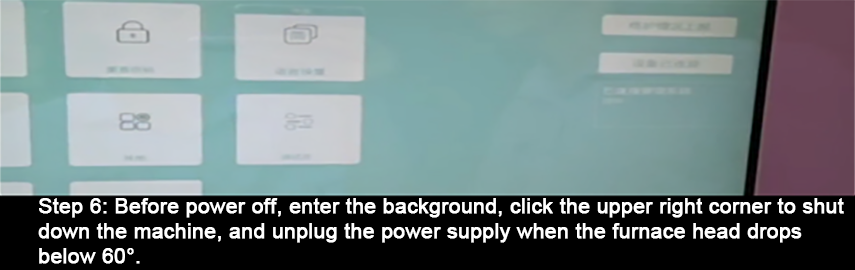

Step 6: Before power off, enter the background, click the upper right corner to shut down the machine, and unplug the power supply when the furnace head drops below 60°.
