Introduction
To enable you to understand the machine quickly and accurately and to use it correctly and safely
Please read this manual carefully so that you can get a good understanding of the machine and use it correctly and safely, and may it give you a good guide to open a new joy with your own hands!
The Ultimate Disc is our own innovative carnival lottery machine. This machine is generally
The machine can be used indoors. The machine is very rich in game scenes, which attracts children of all ages. The machine has 3 levels of play, each with an increasing level of difficulty. Each level has a different way of playing.
Here I will guide you through the descriptions of the different sections of the machine.
Features
Powerful game scenes that easily attract players to the game, with simple and easy to understand gameplay;
The mechanical mechanism is designed to be sturdy and durable. Our infrared is using imported infrared photo eye, while the relay is also using imported brands. Ensure that the machine to the guests solid and reliable;
Stable and reliable control circuits, tested by years of actual use, with stable procedures;
A range of premium lottery machines that can be adapted to universal coin or card systems;
Parameter

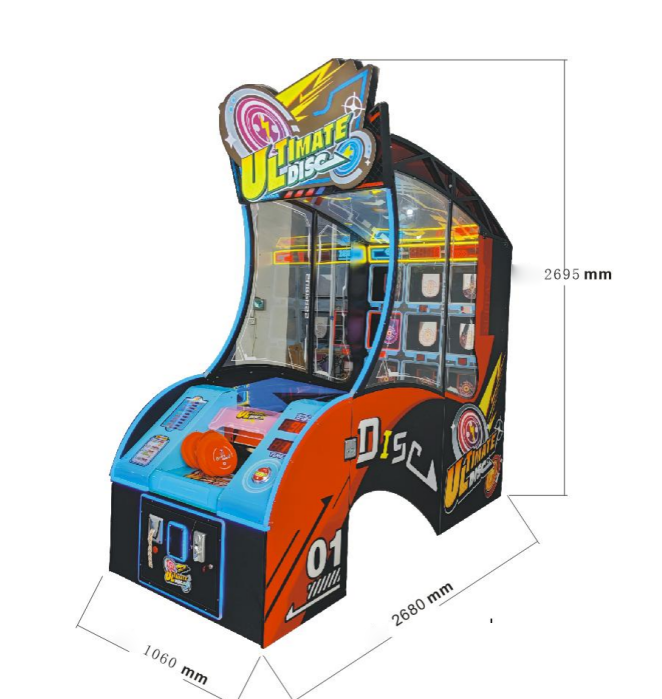

Overall dimensions (D*W*H): 2680mm*1060mm*2695mm
After packing: Separate body size (D*W*H): 1100mm*1060mm*2100mm
After packing: Separate console size (D*W*H): 585mm*1060mm*1030mm
Weight: 350Kg
Working voltage: AC 110V/220V
Frequency range: 50HZ/60HZ
Power: 400W
Application range:amusement park、Family entertainment center、game center、shopping mall
How to play
1. Insert tokens or swipe cards.
2. Press the start button to start the game, pick up the flying saucer and hit the target to score, the more you hit, the more points you get!
The game is over, and the lottery rewards will be harvested!
Description of the complete machine components
External structure composition. As shown in the diagram below:
|
Serial Number |
Name | Attached Picture | Appearance parts plus instructions |
|---|---|---|---|
| 1 | Light box |  |
Mainly used for decoration and for lighting effects when breaking the maximum score |
| 2 | Main game area |  |
This includes the target, the target frame, the digital version of the target score and the digital version of the score. |
| 3 | Belt assembly |  |
The main purpose of the belt assembly is to carry the Frisbee. |
| 4 | Located to the left of the console |  |
Contains instructions on how to play and a table of player scores and lottery levels. |
| 5 | The Frisbee exit area |  |
This is the exit point for the Frisbee and can also be used to store the Frisbee. |
| 6 | Front door area |  |
This area contains the lottery machine and coin dispenser. |
| 7 | Right side of console |  |
This includes the start button, the digital version of the number of games/game time and the maximum points.digital version |
| 8 | Connection lock |  |
This lock is mainly used to lock the console to the back of the machine. |
