System startup

• Check that the appearance and internal parts of the equipment are not damaged, and the internal circuits are properly connected.
• Confirm that the voltage and power of the power supply meet the requirements of the equipment
• Power on

Game Instructions

• The football game machine has control panels on both sides of the player, and the game can be operated on both sides.
• The control panel has two buttons. The green button is to switch the game content; the red button is to start the game after confirming the selection.
• After the player has cast enough coins for the game, press the red start button to start the game.
• The game is divided into two categories: time mode (Time) and scrimmage mode (Race).
• The timing mode is to score as many goals as possible within the limited time to win.
• In the scrimmage mode, within a limited time, one side first reaches the target number of goals and wins, and the game ends. If no player reaches the number of goals within the time limit, both players will lose.

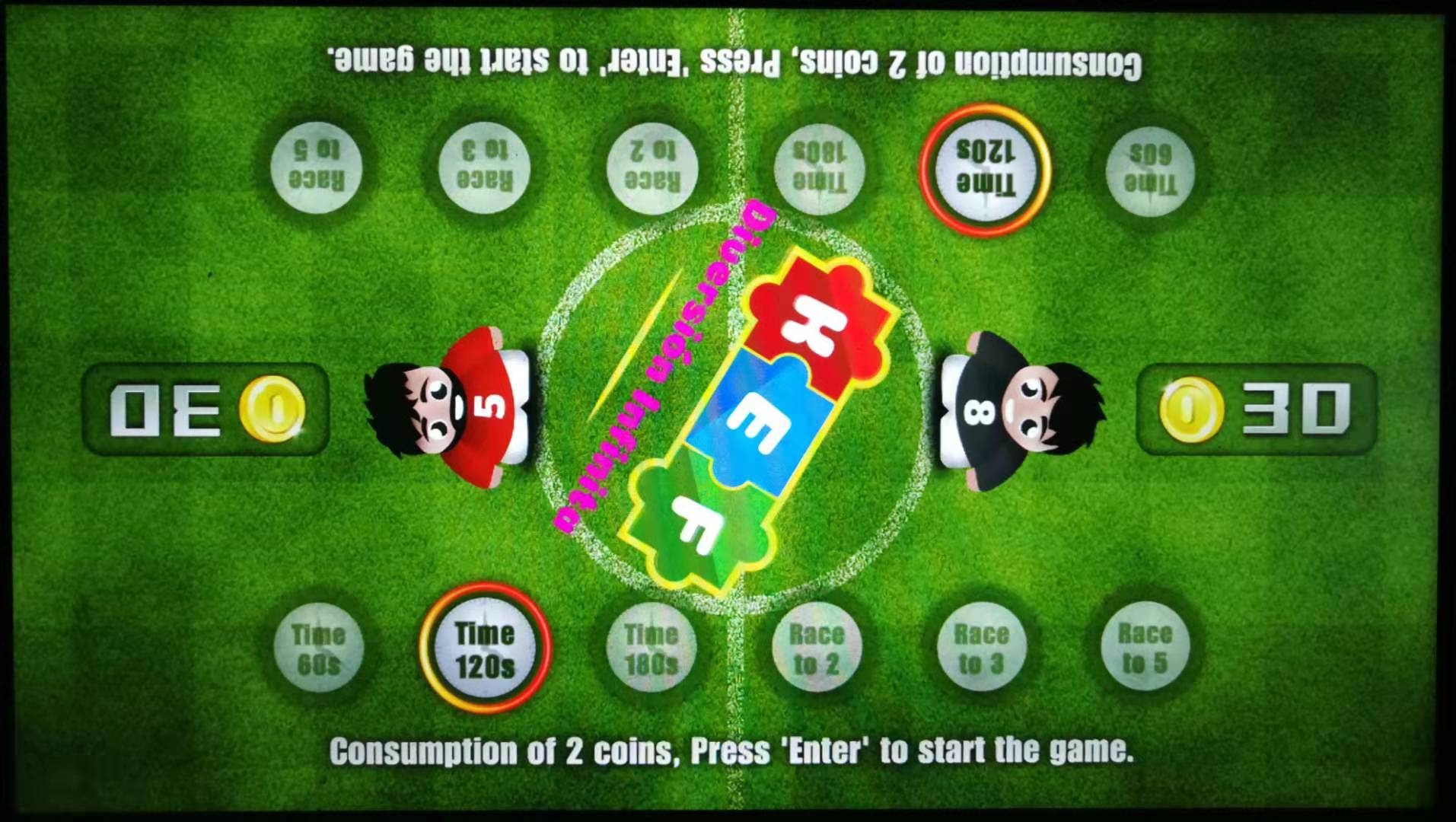

menu page

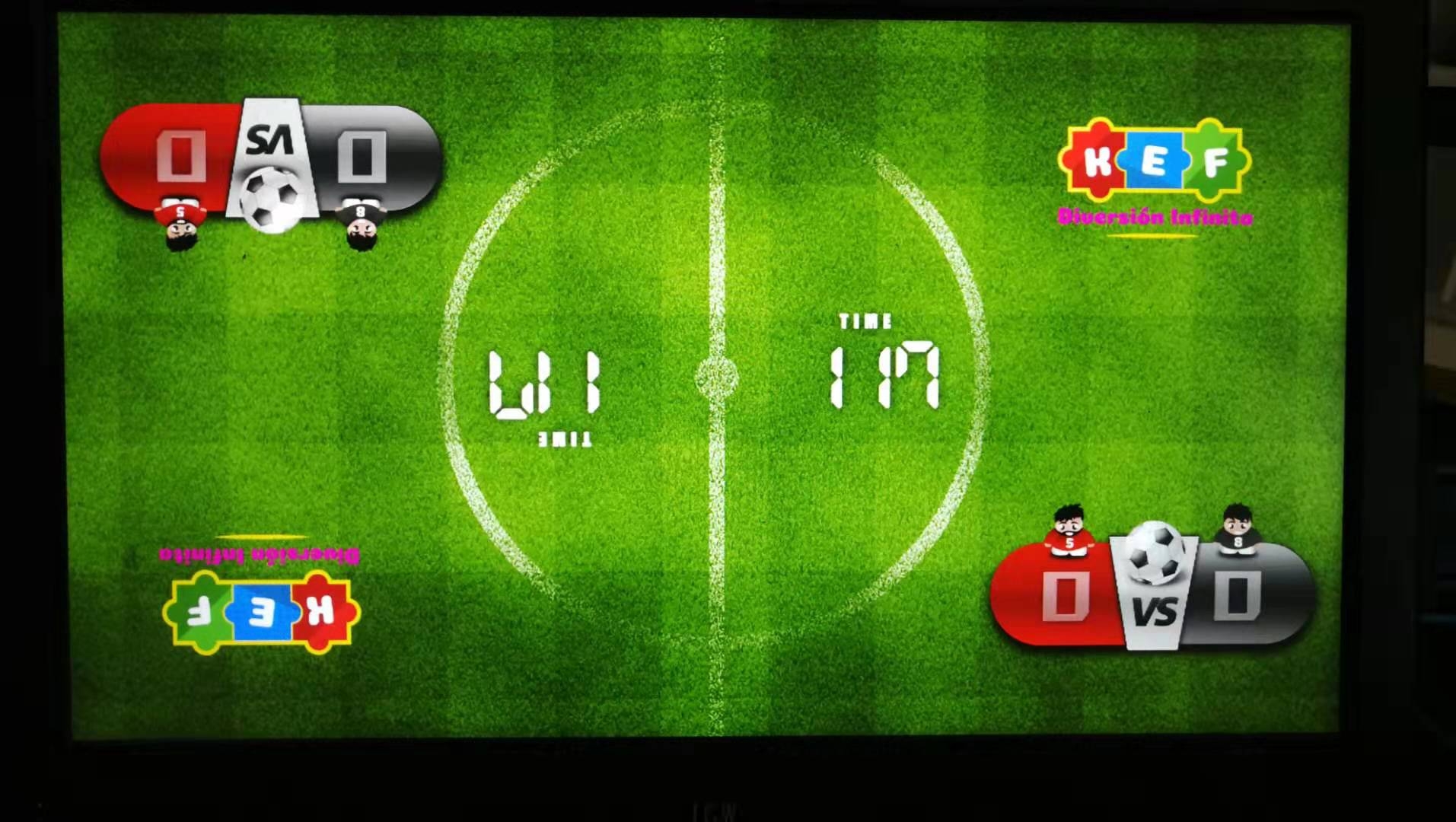

game page

Game Engineering Mode Settings Instructions

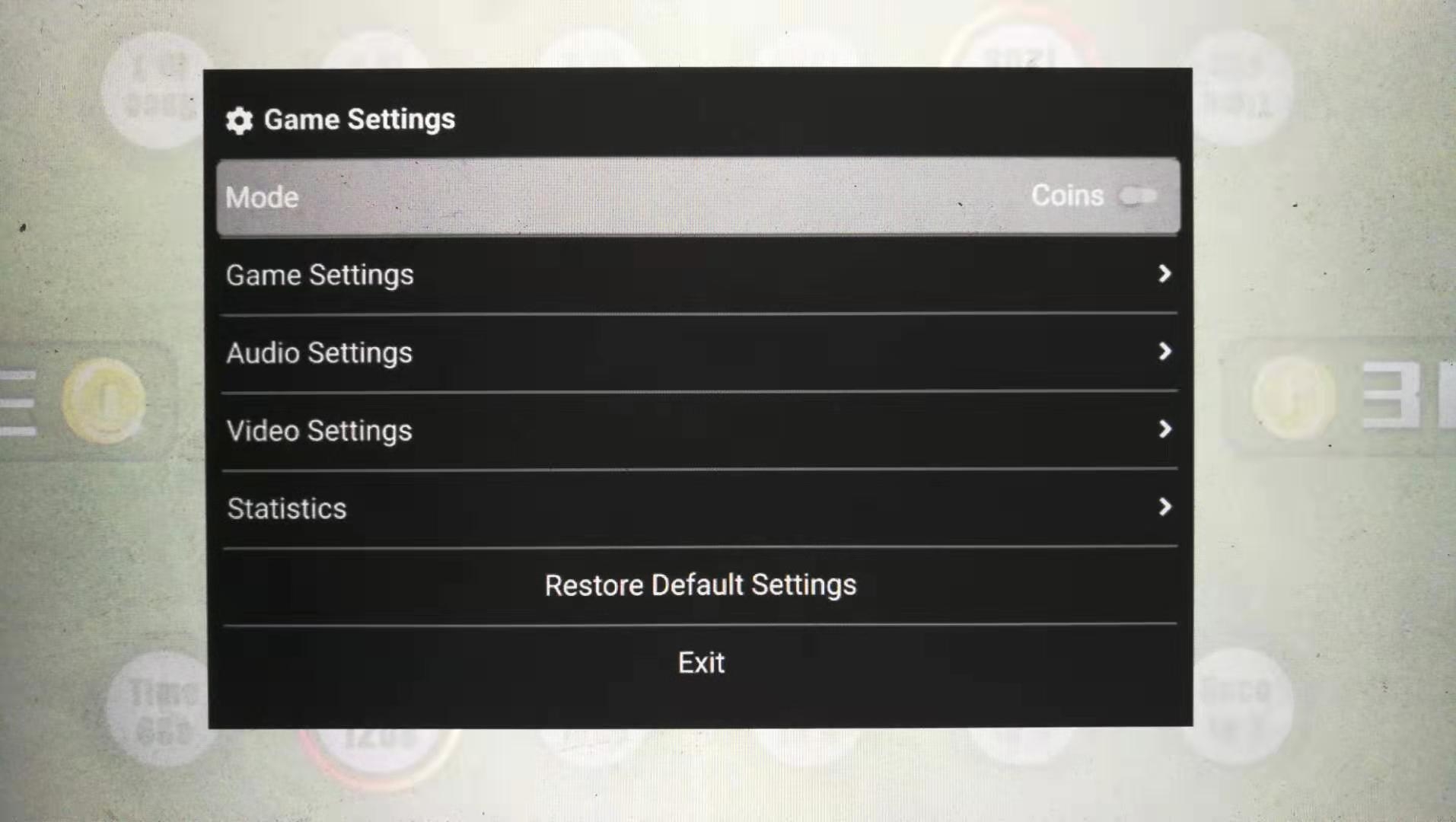

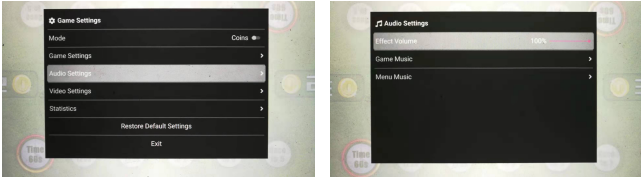

Main menu of engineering mode

Engineering mode includes a total of 7 options

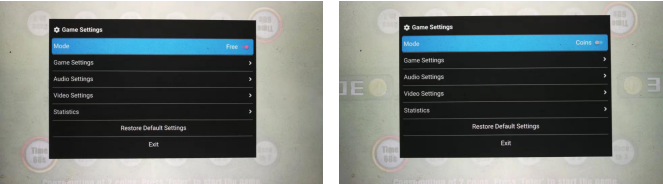

Item 1: Game billing mode settings

This setting can set the device to coin-operated mode or free-to-use mode.

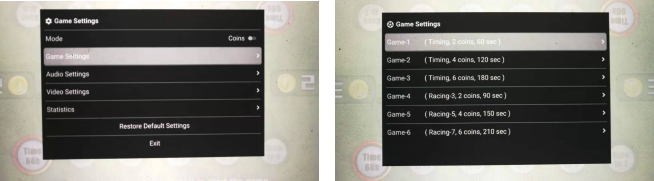

Item 2: Game Content Settings

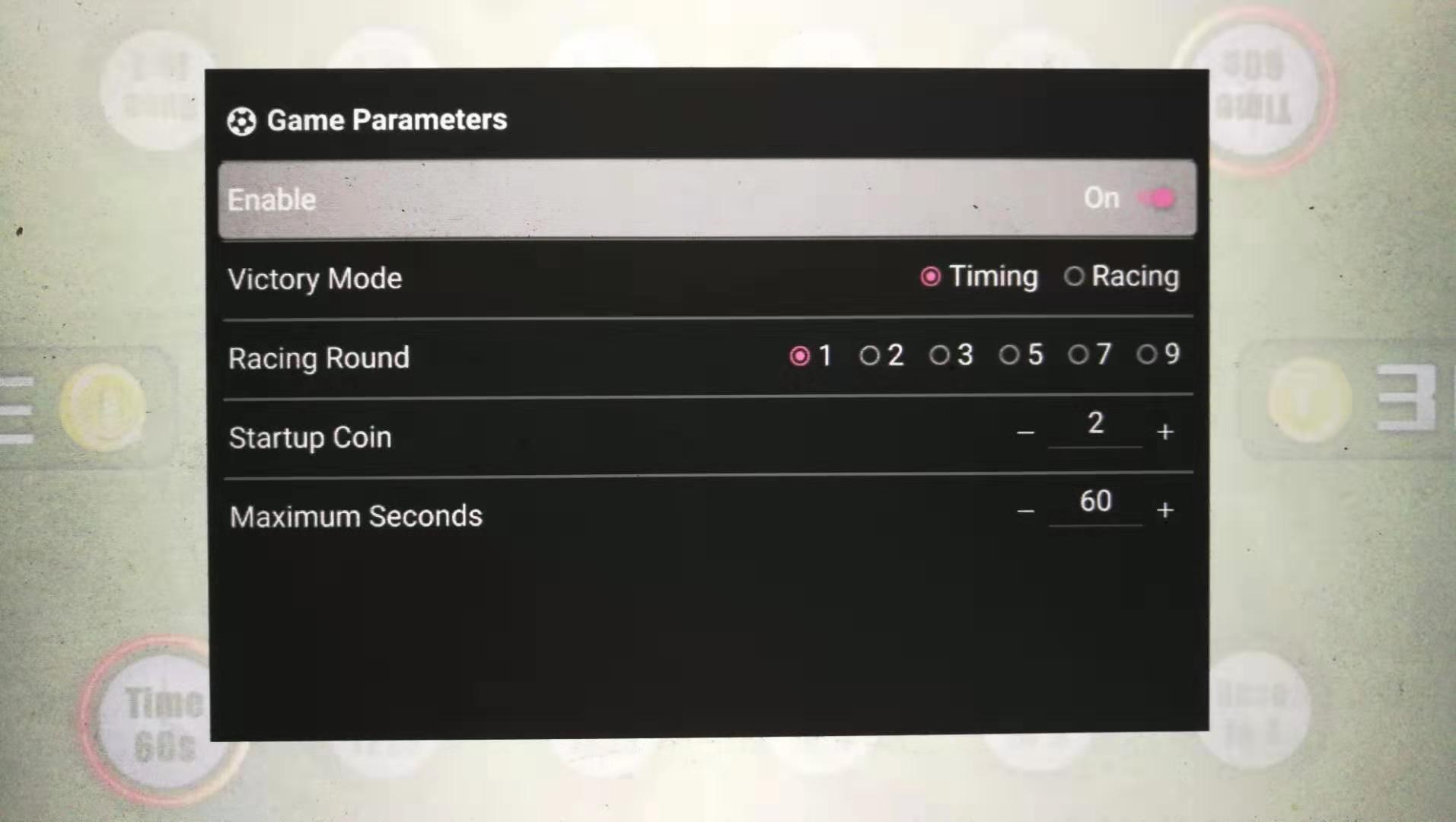

Enter this item, you can set the parameters of each game, after selecting the corresponding game, press the OK button to enter the game settings sub-page, as shown below:

In sub-pages, you can set:
(1): Game function switch: on, the game function is turned on and displayed on the game menu page; off, it can be turned off by the system, but not displayed on the game menu page. So through this switch, you can control the number of game types on the game menu page, the maximum is 6 games, and the minimum is 1 game.
(2) Game mode: choose whether the game is timed mode or scrimmage mode
(3) The number of winning balls in scrimmage mode, this setting is invalid in timing mode.
(4) This game requires several game coins.
(5) The duration of this game is limited. In timekeeping mode, this time is the game time, and in scrimmage mode, this time is the longest game time.

Item 3: Audio Settings

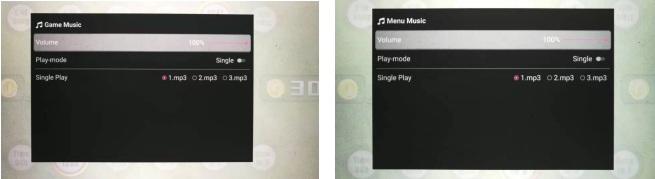

Enter the third audio setting, you can set the total volume and game music and menu music respectively. Game music and menu music have setting sub-pages. As shown below.

In the settings sub-page, you can set the volume and playback mode of game music or menu music respectively (single music loop or 3 music loops)

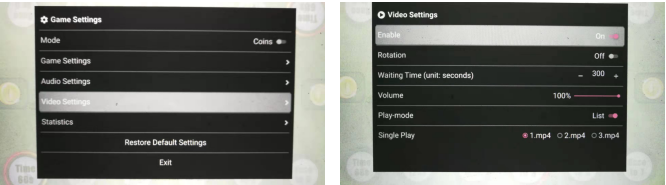

Item 4: Video Settings

In this setting, the following contents of the standby video can be set separately:
(1) Whether to play the standby video: on, play; off, not play
(2) Whether the video screen is rotated: on or off, to control the display direction of the video
(3) Time to enter standby video: default 5 minutes
(4) Standby video volume
(5) Video playback mode: Play a specified video or all 3 videos in a loop.
(6) Which specified video to play.

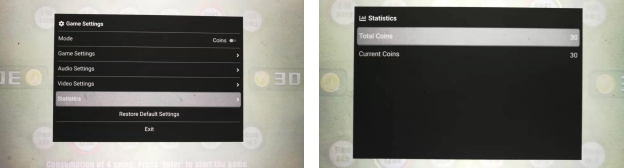

Item 5: Charge Inquiry

Entering this item, you can query the amount of currency accumulated in the history of the machine, as well as the amount of currency that is not currently used. This counter cannot be reset after leaving the factory.
