Project Description

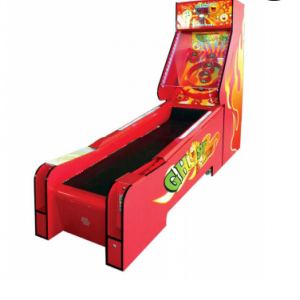

Ghost Bowling Games Fireball Skee Ball Games For Sale

Specification

  • Votage: AC220V±10% 50Hz or AC 110V±10% 60Hz; (Note: As the actual voltage, please refer the label of the machine)
  • Power: Max 180W;
  • Dimension: W765×D3112×H2110(mm);
  • Weight: 185KGS;

How to play

  • Insert coins;
  • The Coin throw into the Hole on the basket you can Win the Score;
  • If the Coin Throw into Jackpot’Hole, You win the Jackpot;
  • If the Coin Can not throw into the Hole, You win mercy ticket.
Ghost Bowling Skee Ball Arcade Game Machine

Package Contents

When opening the box of packaging, make sure that the following parts are supplied.

  • Body Assembly: 1 unit
  • Accessories:

No.

Component Specification Qty

Note

1 Power wire 1.5M 1
2 Fuse Φ520mm 3

3A/250V(For 220V)

6A/125V(For 110V)

3 Operation Manual 1
4 Key 3157 1

MainBody

5 Key 3172 1 CashBox
6 Ball 11

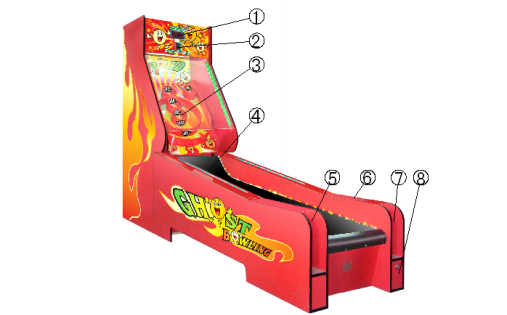

MAJOR COMPONENTS

Ghost Bowling Skee Ball Arcade Game Machine

1.Score Display;2.Balls Left;3.Target(Play Field);4.Ball Truck;5.TicketDispenser;6.Ball Box;7.Coin Acceptor;8.Coin Box.

Locations to avoid installing:

This machine is designed for indoor only. Never install this machine outdoor or at any of the following:

  • Locations exposed to direct sunlight.
  • Locations subjected to rain or water leakage.
  • Damp、dusty or hot places.
  • Do not place close to a heat source.

Game leveling

Install this machine on a flat surface. Adjust the level adjustor to adjust the height of the machine and tighten them. (The casters are raised approximately 5mm above the floor, casters should be able to rotate freely).

Make sure that the machine is level with the floor. If the machine is not level, the game may not be play well.

Play Zone

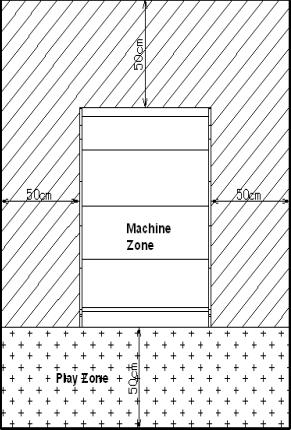

Space for Operation

This machine requires space for playing the game (play zone), and for maintenance (Maintenance zone) as shown below.

Be sure to leave enough space when installing the machine.

Ghost Bowling Skee Ball Arcade Game Machine

Locations to avoid installing

This machine is designed for indoor only. Never install this machine outdoor or at any of the following:

  • Locations exposed to direct sunlight.
  • Locations subjected to rain or water leakage.
  • Damp、dusty or hot places.
  • Do not place close to a heat source.

Game leveling

Install this machine on a flat surface. Adjust the level adjustor to adjust the height of the machine and tighten them. (The casters are

raised approximately 5mm above the floor, casters should be able to rotate freely).

Make sure that the machine is level with the floor. If the machine is not level, the game may not be play well.

Movement and Transport

Turn off the power before moving this machine.

If the casters are not move, please change them.

Be careful not to damage the machine during transport.

Move、overturn and transport must accord with the request of the factory
