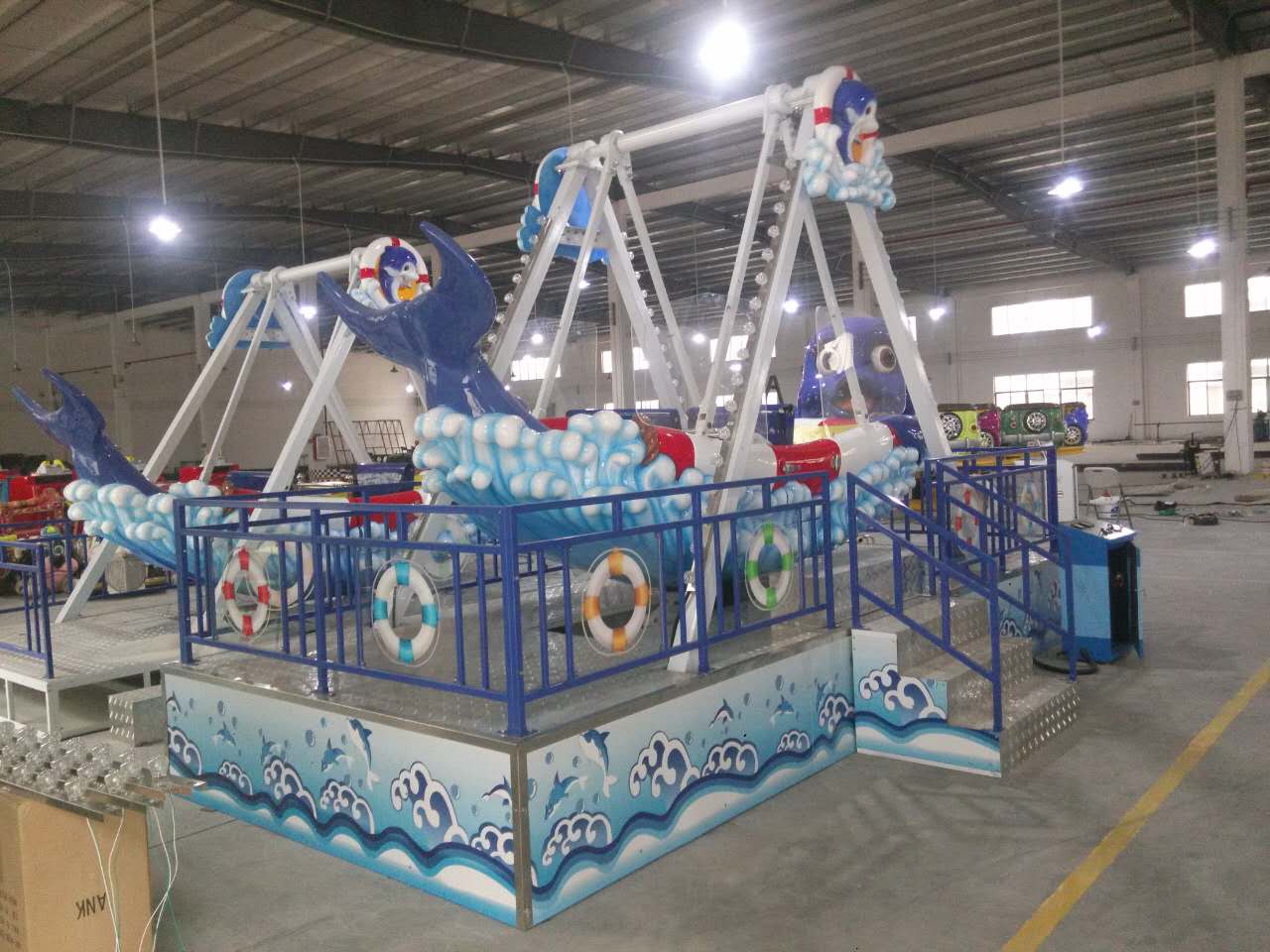

Pirate Ship Fairground Ride|Amusement Park Carvinal Rides For Sale
1. Working voltage: 380V
2. Maximum power: 3KW
3. Passenger capacity: 10 people (including children)
4. Equipment height: 3.7M
5. Floor area: 5.72M x 2.39M
6. Swing angle: <50°
Adjustable operating time and speed classification
Pirate ship is a novel and safe and easy to operate. It is the best choice for amusement parks, super market places and parks. The product has following characteristics:
It is designed and developed by many excellent engineers in the amusement area in China. And all parts of this product are made of excellent material with new color separation technique, which is colorful and long lasting.
Excellent motor can provide the strong support , which is firm and reliable.
There are sounds to indicate the startup and stop of Boat. People can hear the beautiful electronic music during the performance.
More exciting when it’s moving can you feel, children can play it with his/her family. Parents can encourage their child when they are playing
Scope of application
The machine is suit for the amusement park and other indoor and outdoor place of entertainment for use；
The machine is suit for use under the area of 2000m elevation;
The temperature is between-20℃~40℃ and the relative humidity of environment is less than 90%；
Power：3N-380V/220V 50Hz，TN-S earthing system；
The fluctuation range of the supply voltage shall not exceed the rated value + 10%;
The equipment can not be installed under the high tension line.
The Pirate Ship Fairground Ride is a typical product of large-scale amusement facilities such as sightseeing buses. Because its appearance is famous for imitating the ancient pirate ship, but the shape is different and the name is different, some are called “swinging dragon boat”.
Its main feature is that passengers partially reciprocate around the horizontal axis within a limited swing angle, passengers board the ship from the platform, sit on their seats and press the safety protection rod to the right position.
The “Pirate Boat Swing ride” slowly swings after the start of the drive system and gradually accelerates, from slow to rapid, as if passengers go out to sea in a storm, sometimes they rush to the top of the waves, sometimes they fall to the bottom of the waves, which is both interesting and exciting. Deeply loved by passengers.
The schematic diagram of the structure is shown in the diagram 1-14
5. Main support frame: column, herringbone frame, crossbeam etc; 6.Inspection ladder; 7. Hanger: pull rod, connecting shaft etc.
How to do daily maintenance on a Pirate Ship Fairground Ride?
First of all, the Pirate Ship Fairground Ride equipment operation should carry out daily inspection, monthly inspection and annual inspection of the equipment, and make a good inspection record.
Second, daily inspections of Corsair equipment should include the following:
1. Inspection of various safety devices, such as pressure bars and protective ropes.
2. Inspection of power unit, transmission and braking system.
3. Inspection of the equipment itself, chains and rides.
4. Check the control circuit and electrical components.
5. Inspection of various wearing parts, such as gears, etc.
