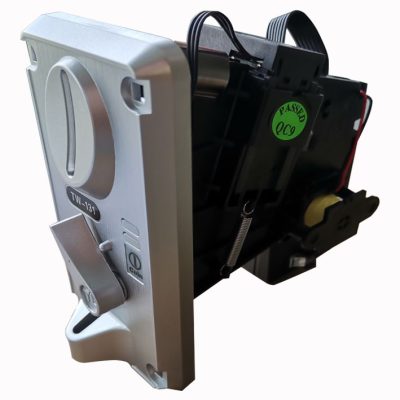

TW-131 Vending Machine Bill Acceptor

TW-131 Vending Machine Bill Acceptor , used in conjunction with the dimensional code device, to attract more customers.

Application range:amusement park、Family entertainment center、game center、shopping mall

1.Intelligent LED display reminder function. Make operation intelligent and simple.

2.Power-on reminder, the blue light is on, indicating that it is powered on normally

3.Coins be stuck reminder: The red light is on and the blue light is off, indicating that there is a coin or foreign object stuck in the product

4.Counterfeit currency reminder: the red light flashes once when a counterfeit currency passes through

5.Fishing reminder blue light and red light flashing at the same time indicate fishing failure

1.High-performance CPU processing system scoring accuracy 100%.

2.The anti-interference isolation circuit design greatly improves the stability and durability of the product.

3.Pull out the hand and adopt human mechanics design to refund coins easily and quickly.

4.Supports hot-swappable, plug-and-play, more convenient installation and replacement without power-off operation

5.Anti-large coin adjustment metal sheet can manually adjust the size accuracy of the coin.

6.The spring force is optimized and the coin channel clutch state can be quickly restored after clearing the fault to ensure smooth coin insertion.

7.The opening angle is optimized to prevent the opening angle from being too large, resulting in the disconnection between the back cover and the coin channel.

8.Cover-opening design (can be opened 130°), worry-free for coins, easy to clean.

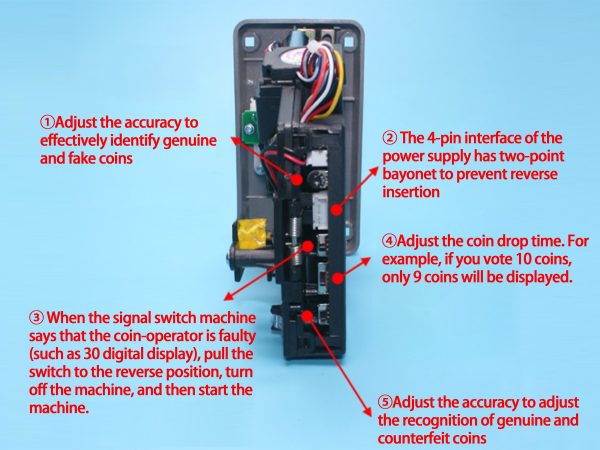

VR: Accuracy Adjustment Knob for manual fine-tuning of accuracy

SW1: COIN polarity switch adjusts the output polarity normally open (NO)/normally closed (NC)

SW/2: The output signal can be adjusted with fast, medium and slow pulses, compatible with all machines.

SW3: The precision switch is accurate and the normal mode is free to switch more conveniently

1.Electronic products (no fireproof, waterproof, non-dust) function.

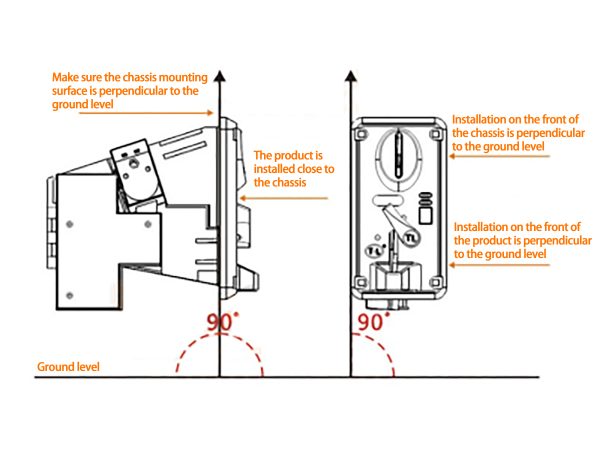

2.Make sure that the working voltage is the same DC+12 as the rated voltage of the product before starting the machine. Otherwise it will cause damage or the problem of inserting coin not smoothly . When installing, ensure that the product is in the horizontal and vertical position of the effective coin insertion. Improper installation will cause the coin to be stuck, the coin insertion will not be smooth, and the scoring will be inaccurate.

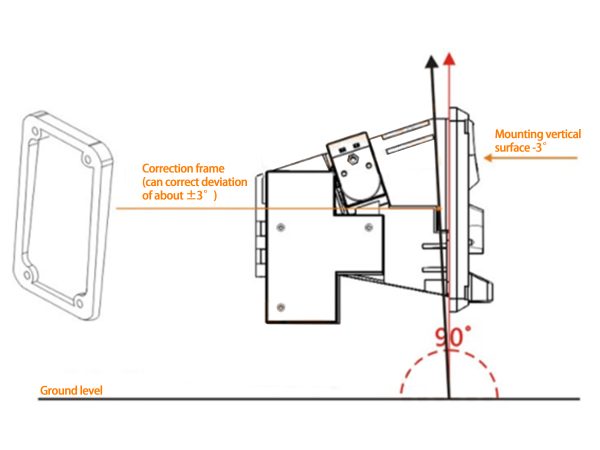

If the installation surface cannot be perpendicular to the horizontal line due to the structure of the machine, a coin-operated calibration frame can be installed, as shown in the figure below:

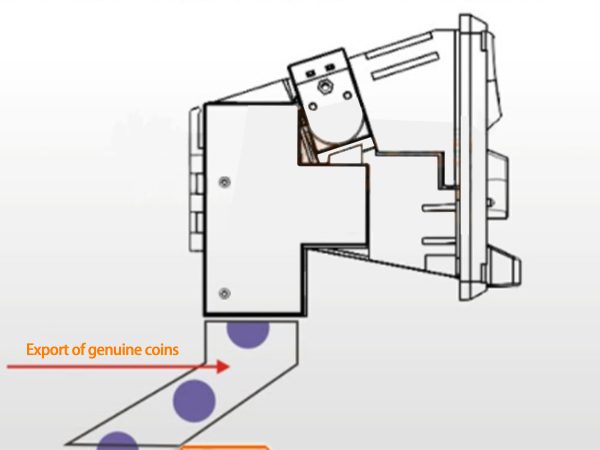

Before use, make sure that the coin channel of the machine is smooth, otherwise, it will also cause coins to be stuck, the coins will not be inserted smoothly, and the scoring will be inaccurate.
