Hot Strike

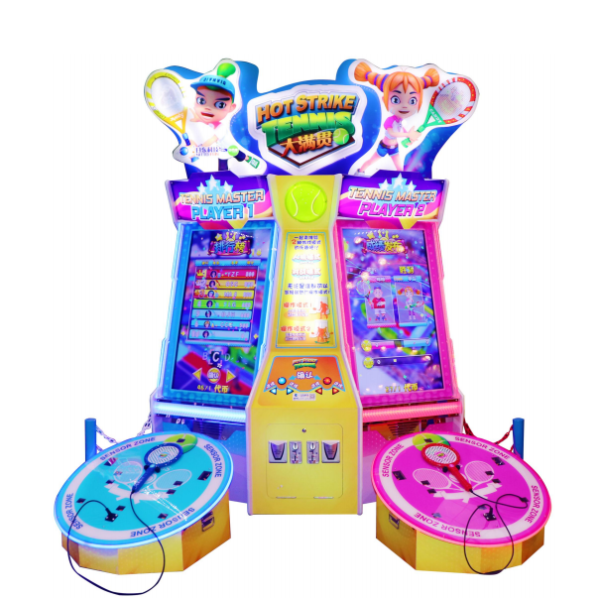

Hot Strike Virtual Tennis Arcade Game Machine

What is this arcade sports games features?

Carnival redemption ticket arcade tennis games machine
The gameplay is new, exciting, and very entertaining.
The shape design is beautiful and generous, the patterns are bright and delicate, and the materials are exquisite.
Using large-scale integrated circuits, built-in programs, stable and reliable performance.
Use imported lottery dispense.
Adapt to common types of lottery tickets.
Adopt imported coin-operated device, the diameter of coin volume can be adjusted from 20mm to 28mm, the precision bottom height,Stable and reliable.
The game program and revenue ratio are finely adjustable.

How to play?

There are 2 game modes:

The player presse the start button, selects a character, selects the battle mode, the man-machine mode ortwo-player mode.
Players watch the screen prompting to swing the racket to compete.
The game is over, the more points you get, the more votes you get.

What are the arcade tennis games machine specifications and technical parameters?

Working voltage: AC220V±5% 50Hz (or AC 110V±5%, 60Hz(Please refer to the nameplate of the machine for specific voltage.).
Maximum power consumption: 800W;

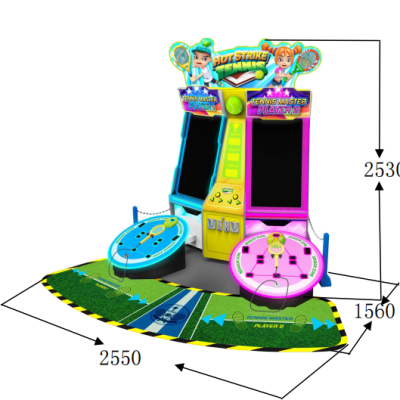

Dimensions: W2550×D1560×H2530(mm) without carpet size.
Weight: about 250 kg;

Environmental conditions: (indoor) temperature: -10~+40°C.Temperature: ≤90%;Atmospheric pressure:86Pa~106Pa.
Application range:amusement park、Family entertainment center、game center、shopping mall

List of random accessories

According to your normal use of this machine, please check carefully once you received the items with following items:

One main board, one set of maintenance parts, the list is as follows.

Serial number	Accessory name	Specification	Quantity	Unit	Remark
1	Power cable	1.8m	1	Strip
2	Fuse	5XΦ20mm	2	Unit	10A
3	Manual		1	Unit
4	Maintenance door key	AH78	2	Unit	Front door and back door
5	Maintenance door key	AH57	3	Unit	Front door and back door

How to place, fix and move?

This machine is suitable for indoor use and is not allowed to be used outdoors;Outdoor use will affect the performance of the machine.
Placement range size:
- The machine should be placed in the following dimensions. There is enough space for air to circulate, and the heat dissipation effect of the machine will be better.
Please don’t use the machine as below status.
- The place which will cause the machine to produce condensed water or a place where the temperature is high;
- The places close to high temperature objects.
- The places close to dangerous goods.
- The smooth or unstable places.
- Near equipment that is prone to sparks.
- The places with severe vibration.
- The a dusty environment.
What must be paid attention to when it needs to moving?
- Before moving, you must turn off the power and unplug the power connection.
- If the casters cannot be rotated when moving, please replace the casters.
- Random artificial movement, overturning, transportation, etc. will damage the equipment and destroy the mechanical properties.
- Confirm that the manufacturer’s requirements must be met during the process of moving, turning, and transporting.

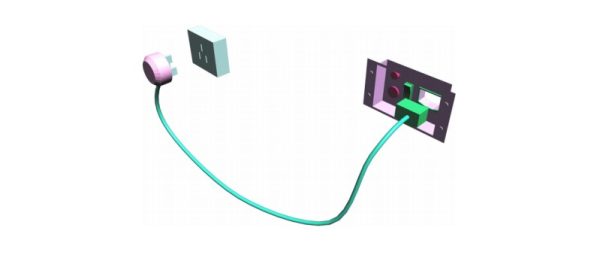

How to connect the power supply of tennis video games machine ?

Note: The power cord cannot be pressed by heavy objects, as this will damage the cord and cause a short circuit, which may cause a fire in severe cases.

When unplugging the power cord from the socket, you should grasp the plug and pull it out instead of the cord.
Do not pull out the plug directly with wet hands.
Do not forcefully stretch or twist the power cord, and do not expose the power cord to high temperatures.
The power cord cannot be easily kicked or touched.
To use the correct voltage and fuse (refer to technical data).
