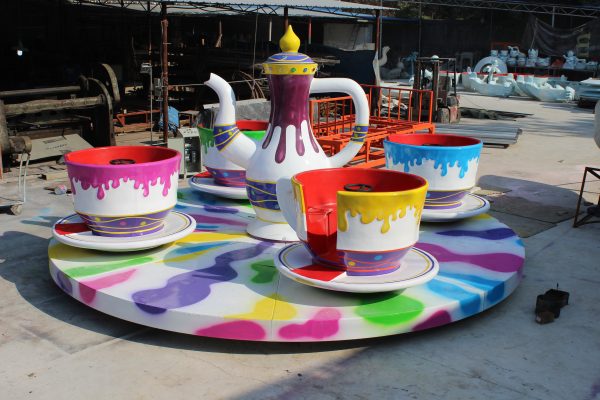

Coffee Cup Ride Carnival Rides
Parameter
Crew: 24 people,
Power: 5KW,
Power supply: 3N+PE 380V/220V 50
Rotation speed: 1.9M/S,
Rotation diameter: ￠6m,
Area: 6M,
Equipment weight: 2.5 tons,
Equipment height: 2.8m
Description
It adopts a novel shape of the spining cup ride, which is safe, reliable and comfortable to ride. You can turn with the rhythm of the device, or you can control your own direction. With the revolution of the large disk, the rotor cup also rotates in the opposite direction around the center line of the small disk. With the rhythm of the music, the speed of the turntable is also fast and slow, warm and romantic, especially suitable for tourists of a family or different ages.
Carnival Rides For Sale|Amusement Park Tea Cup Ride For Sale|China Theme Park Ride Supplier
What are the characteristics of the structure and movement of the tea cup Carnival Rides?
- The rotating coffee cup ride/ tea cup Carnival Rides is a typical product of the large carousel amusement park rides . The rotation ride machine is equipped with a large turntable, a small turntable and a turntable cup.
- The big turntable is with three small turntables, and each small turntable is with 3 revolving cups. The moveable cup is for players to sit in. In addition to rotating around its own central axis, the cockpit also rotates around the center of the turntable.And each small turntable rotates around the center of the big turntable.
- Visitors sit in the cup and have fun of multiple compound rotations. They can choose the rotation limit according to themselves. The cockpit is manually rotated through the middle hand wheel to obtain a more exciting rotation speed. Each cup can seat four people, which is suitable for families and tourists of different ages to participate.
- The tea cup ride cockpit and decoration are with vivid and beautiful design. It is deeply loved by tourists. The whole rotating cup rides amusement game machine is mainly composed of a large turntable, a small turntable, a rotating cup, a rotating support, a drive system, an operation control system and other spare parts. The structure is shown in Figure 1-2.
Figure 1-2 Rotating cup
1—Large turntable; 2—Large turntable support frame; 3—Large turntable slewing support and reduction motor;4—Base;
5—Small turntable support beam; 6—Turntable; 7—Slewing support and geared motor;8—rotating cup; 9—rotating support; 10—hand wheel;
11—control operation room
