Project Description

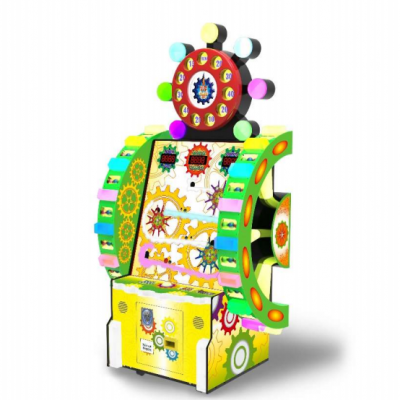

Lucky Balls Coin op Arcade Ticket Machine
Introduction of this product:
《Lucky ball》gear machine is a newly developed company Carnival lottery game machine,An indoor game designed specifically for mass entertainment machine,It has a fresh and lovely appearance,Machine stable and firm,And play easy to understand,Is the playground of the best entertainment products,It is also a good platform for leisure and entertainment between parents and children.
Features of this product:
The purpose of new gameplay,stimulate,Full of leisure and entertainment; An elegant design,Bright pattern、Exquisite,Tube material selection、Iron and metal、Plywood and other materials production,Steel after rust treatment,Safe and durable; In the large scale integrated circuit,Built in style,Stable working performance、reliable; In the selection of high-end lottery machine , Any ticket machines are 2 acceptable;The purpose of the game program and fine adjustable rate revenue.
Technical parameters:
The working voltage : 220V/110V ( According to the determined nameplate)
The power consumption:Minimum power:250W
Maximum power:350W
Dimensions:W780×D1180×H2500(mm) The weight:about 153 kg
Environment conditions:(Indoor)Temperature:-10℃ ~ +40℃Humidity:≤90%
Atmospheric pressure:86KPa ~ 106KPa
Application range:amusement park、Family entertainment center、game center、shopping mall
The installation and debugging.
Before the installation,Please press the list of approved components,Component assembly.
The use of the site must be level fastening,The place your feet on the ground to a fixed level.
After installation,Plug in power line switch,Check the operation of each part of the machine is normal,If there is abnormal phenomenon in time to stop and remove obstacles.
Be careful
The power line is not weight pressing,This will damage the wires and cause short circuits,Severe cases may cause fire.
While the power line from the socket when pulling,Should grab the plug and pull out,Can not seize the wires pulled out.
Is not directly pull the plug with wet hands.
Can not be forced to stretch、Twisted power line,The power cord can not be exposed to high temperature objects.
The power line can not easily be kicked or contact.
Is to use the correct voltage and fuse.
Function set button operation method: (Reference physical map)
Press the menu on the counter (Service) key to enter the function settings.
Press the switch (Test) key on the counter to select the settings key. (P01-Prsets the project increment key. The following table).
Press the add and subtract (Ticke Owing) key on the counter to set the project function parameter (range value increment key.
Set up and then press the counter on the menu (Service) key, automatically save MCU, and exit the function settings.
