Ten Ring Shooting Target Shooting Games Arcade Machine
Introduction to the Product:
Ten Ring Shooting is an indoor real-ball shooting game newly developed by our company and especially designed for any FEC or amusement locations. There are two versions of Ten Ring Shooting – Ticket Redemption / Gifts. Ten Ring Shooting is novel and stylish in appearance, safe and reliable, and easy to operate.Our customers have all achieved above-average earnings with Ten Ring Shooting.
Features of the Product:
Novel gameplay full of fun;
Elegant appearance, bright-colored and exquisite patterns, made of MDF, plywood, angle iron and metal plate, safe and durable due to rust-proof treatment;
Large-scale integrated circuit, built-in program, stable and reliable working performance;
Sophisticated and adjustable game program and win ratio.
Specifications and Technical Parameters
Operating Voltage: AC110V, 50/60 Hz or AC110V±5%, 50/60 Hz
Operating Power: 1800W10A

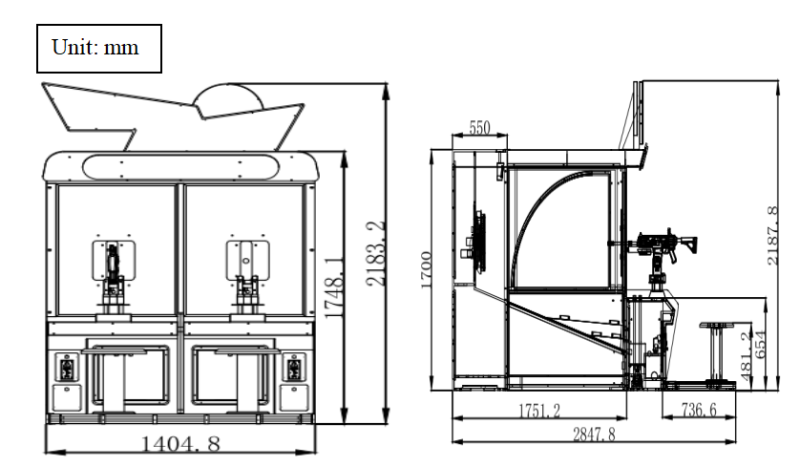

Dimensions: D285*W140*H220cm
Weight: 391kgs
Operating Environment:
- Temperature (indoors): 0℃～35℃;
- Humidity: ≤90%；
- Atmospheric pressure: 86Pa～106Pa.
Application range:amusement park、Family entertainment center、game center
Accessory list
For the normal use of the machine, please open the package and carefully check whether the following items are included.
The accessory list is below:
|
No. |
Name | No.
/Specification |
QTY | Unit | Picture | Remark |
|---|---|---|---|---|---|---|
| 1 | Cable | 10A/250V-3M | 2 | Pc |  |
|
| 2 | Fuse | Φ5×20mm T5A 250VAC | 2 | Pc |  |
|
| 3 | Ball | 16mm | 2 | Pack |  |
300 balls per pack |
| 4 | Screws | Certain types | 1 | Pack |  |
|

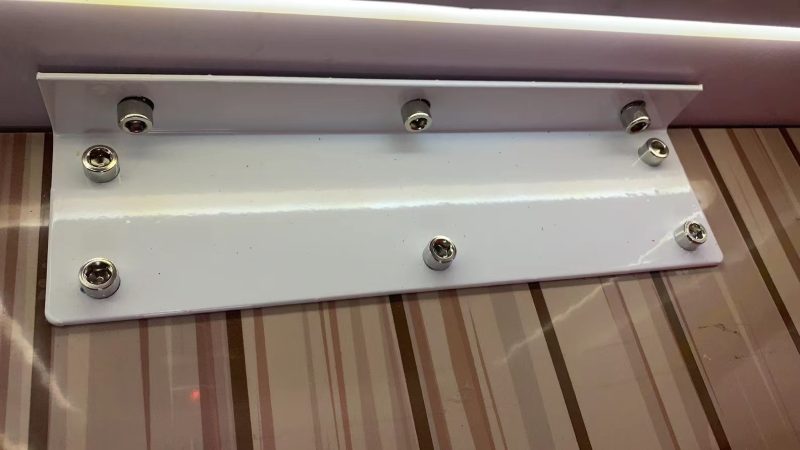

| 5 | Small white metal sheet connected to | 25*7*3cm | 2 | Pc |  |
|

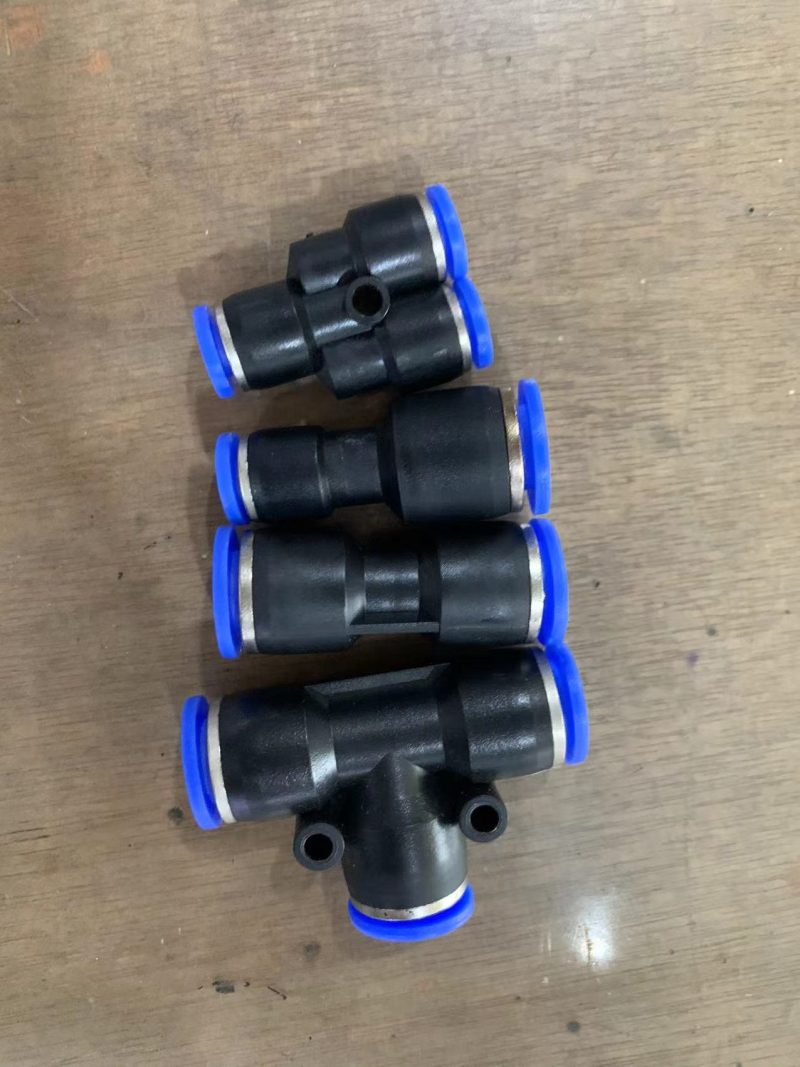

| 6 | Pipe joint | 10mm*48mm | 4 | Pc |  |
|

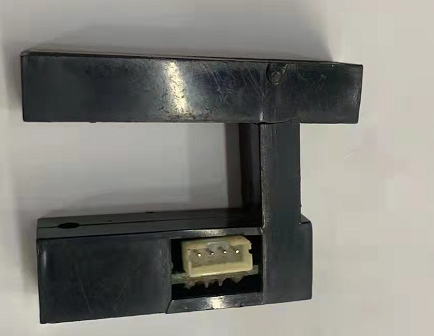

| 7 | Light Sensor | 2 | Pc |  |
||
| 8 | Manual | English | 1 | Pc |  |
|
| 9 | Key for metal door | H992 | 2 | Pc |  |
|
| 10 | Key for wooden door | S250 | 2 | Pc | |
Please open the package and check whether all accessories are included. If not, please contact the distributor of the machine for check.
How to play:
1: Insert coins and press button to start
2: The digital board will display the countdown time by seconds.
3: Press the trigger to shoot the lighted ring, the score digital board will display score.
4: The voice will remind you when you miss the lighted ring; The light will be turned off after flashing 3 times.
5: After 11 times shooting, the target will move right and left;
6: After 16 times shooting, the target will move up and down, left and right;
7: When the countdown goes to 0 or the balls in gun are cleared , the game over.
8: When the standby time is more than 3 minutes, the demo music will play and the light will be on.
