Lumberjack Champion Parameter
size：D120*W188*H235cm 200W 1*32” LCD screen 1P
Independently developed software.
Host configuration：gigabyte brand main board / gigabyte brand
GPU / solid-state drive.
32” LCD SKYWORTH brand LCD screen.
Independently developed high quality prop axes!
Machine structure: metal structure.
Host configuration：gigabyte brand main board / gigabyte brand GPU / solid-state drive.
Application range:amusement park、Family entertainment center、game center、shopping mall

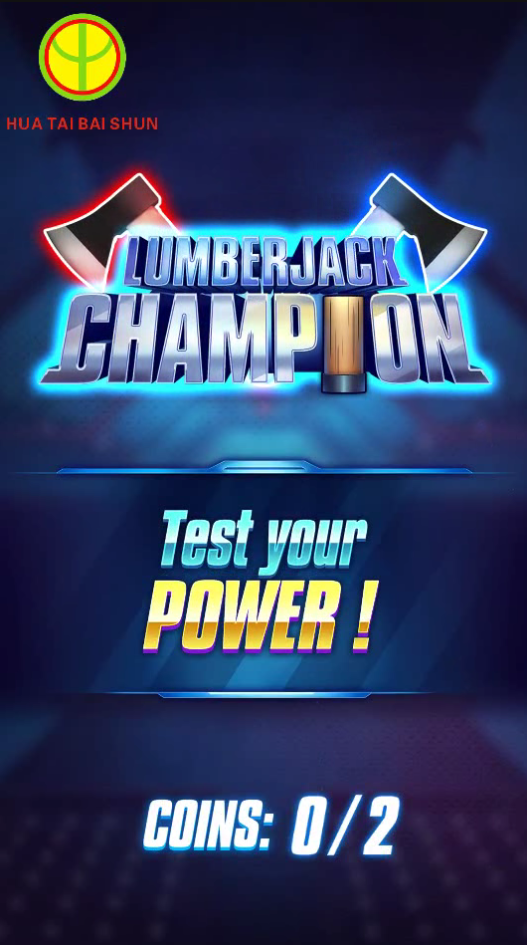

Game UI:
Gameplay:

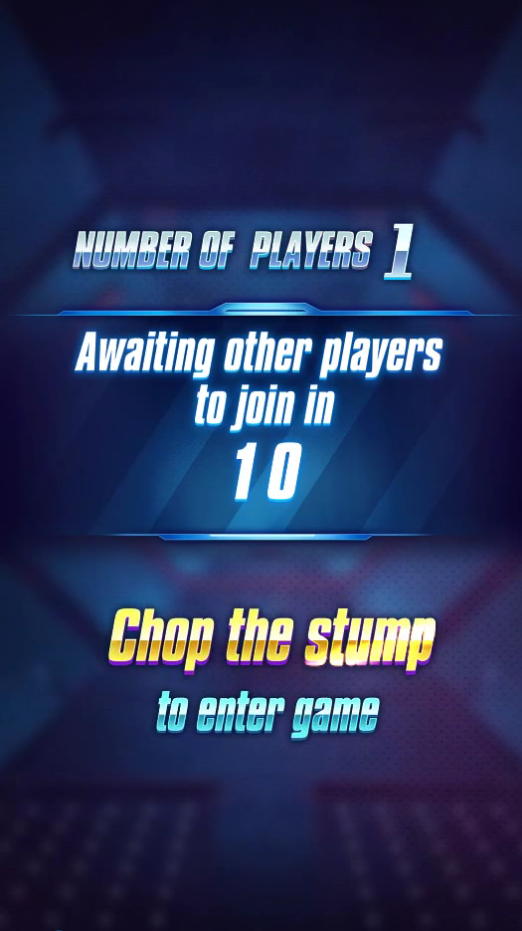

1.Awaiting other players to join in;

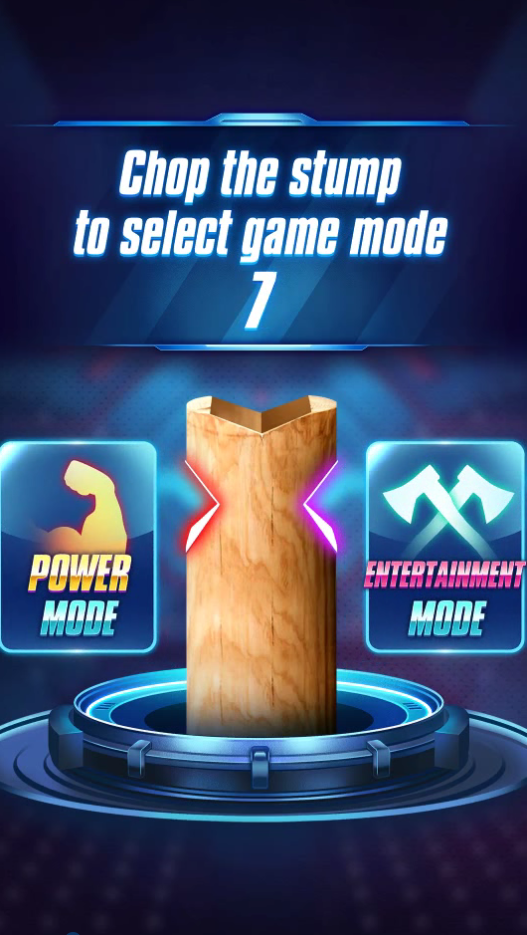

2.Chop the stump to select game mode;

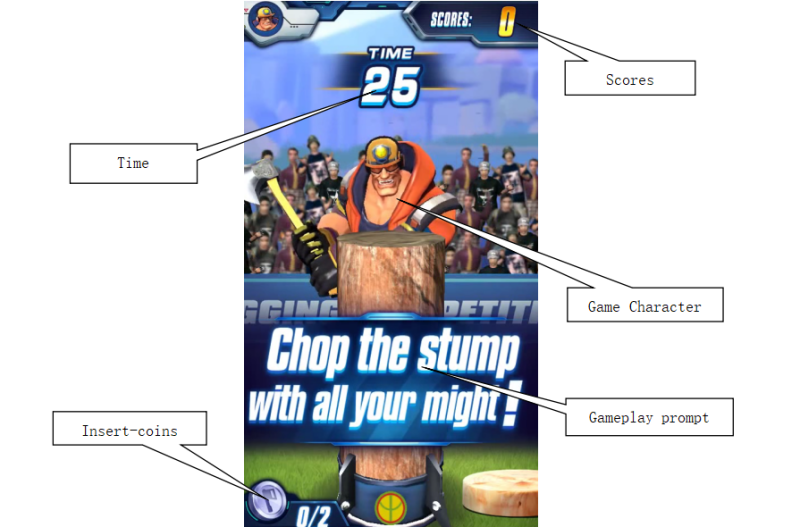

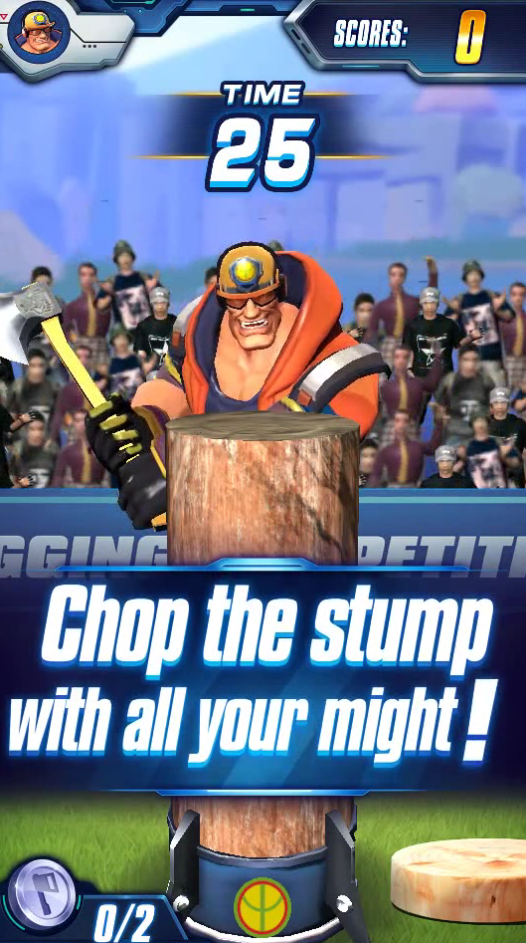

3.Entertainment Mode: Chop the stump with all your might;
4.Entertainment Mode: Chop the stump on the light.
Background instruction:

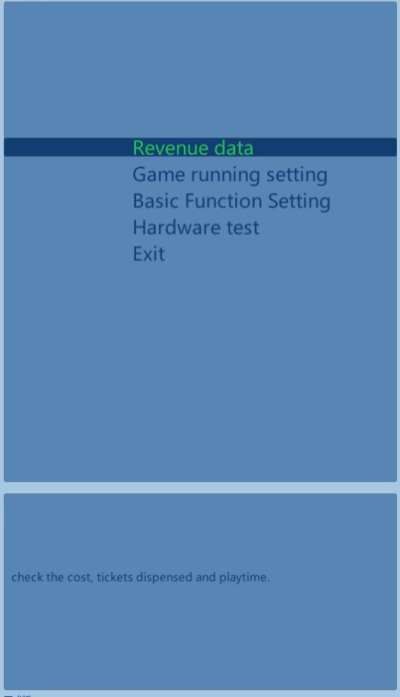

| 【Main page】 |
| Revenue data: check the cost, tickets dispensed and playtime. |
| Game running setting: set up number of insert-coin per game, ticket-out and other functions. |
| Basic Function Setting: set up volume of the game, Standby music etc. |
| Hardware test: check whether the input and output of the hardware are normal. |
| Exit: hold this adjustment and exit from the background. |

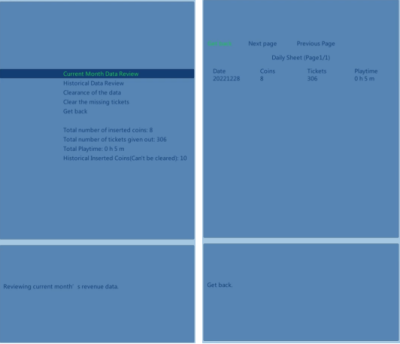

| 【Revenue data】 |
|---|
| Current Month Data Review (Confirm): Reviewing current month’s revenue data. |
| Historical Data Review (Confirm): Enter and select year to review revenue data by month; Select month to review everyday revenue data. |
| Clearance of the data (confirm): clear all the data, unrecoverable. |
| Clear the missing tickets (confirm): clear the hint of the missing tickets. |
| Clear ranking list data (confirm): clear ranking list data. |
| Get back (for sure): get back to the main page in the background. |
| Total coins credits: |
| Total tickets dispensed: |
| Total Playtime: |
| Accumulated inserted coins(Data-clear disable): |

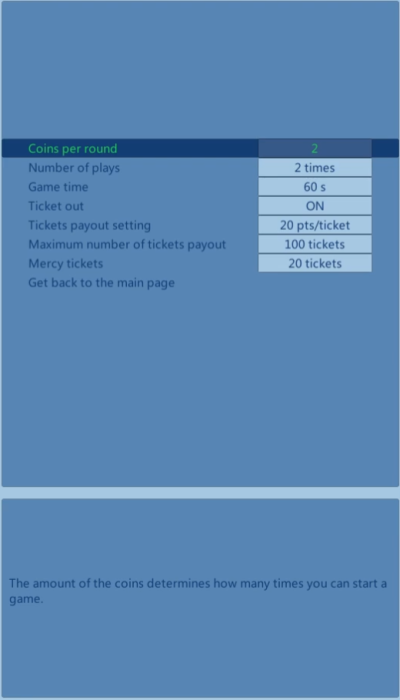

| 【Game Operation Setting】 |
|---|
| Coins per round (1-99/For free): The amount of the coins determines how many times you can start a game. |
| Number of plays (1-3 times): Set up number of plays under “Power Mode”. |
| Game Time (30-120 seconds): Set up game time under “Entertainment Mode”. |
| Ticket out (ON/OFF): Set up if the cabinet to pay out tickets. |
| Tickets payout setting(5pts/ticket-100 pts/ticket): Set up how many points player scores for 1 ticket(The smaller number is , the more tickets are rewarded). |
| Maximum number of tickets payout(10-1000 tickets/no restrictions):If number of tickets awarded to player is more than the maximum number of tickets payout, the ‘Maximum number of tickets” will be the real number awarded to player. |
| Mercy tickets (0-200 tickets):If number of tickets awarded to player is less than the consolation tickets payout, the consolation tickets will be set to award. |
| Get back to the main page (for sure): get back to the main page in the background. |

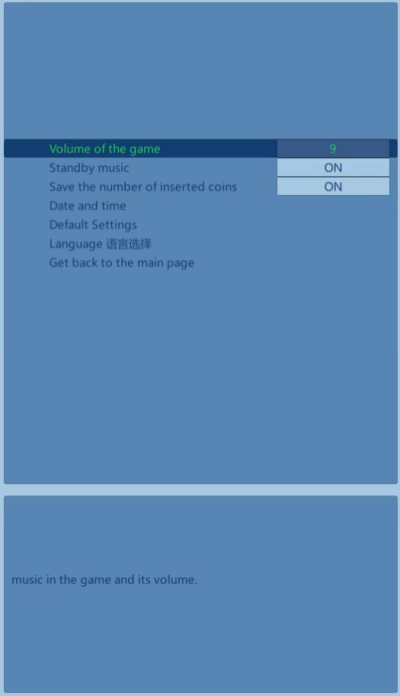

| 【Basic Function Setting】 |
|---|
| Volume of the game (off/1-10): music in the game and its volume. |
| Standby music (on/off): whether music is played when the title and standby picture are played. |
| Save the game cost (on/off): whether the game cost is saved after shutdown or outage. |
| Date and Time Setting(set up): Set up date and time of the cabinet. |
| Default setting (for sure): all options in the background will recover to the factory settings. |
| Language choice(Chinese/English): set the game screen and the language used by the background operation. |
| Get back to the main page (for sure): get back to the main page in the background. |

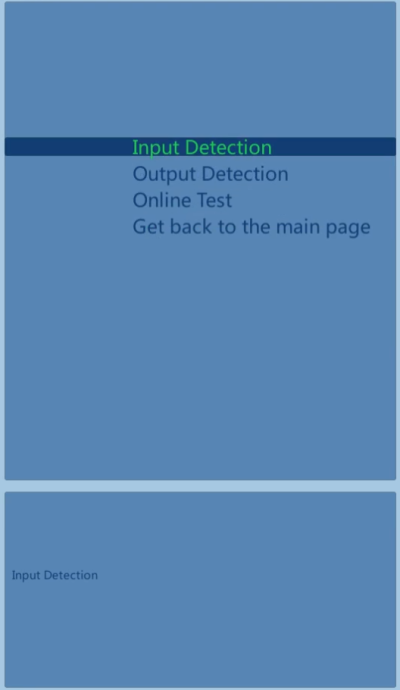

| 【Hardware test】 |
|---|
| Input Detection |
| Output Detection |
| Online Test |
| Get back to the main page |

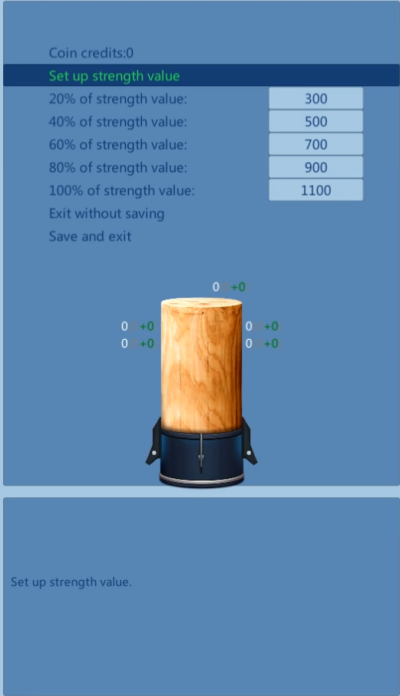

| [Input Detection] |
|---|
| Coin credits:0 |
| Set up strength value |
| 20% of strength value: |
| 40% of strength value: |
| 60% of strength value: |
| 80% of strength value: |
| 100% of strength value: |
| Exit without saving |
| Save and exit |

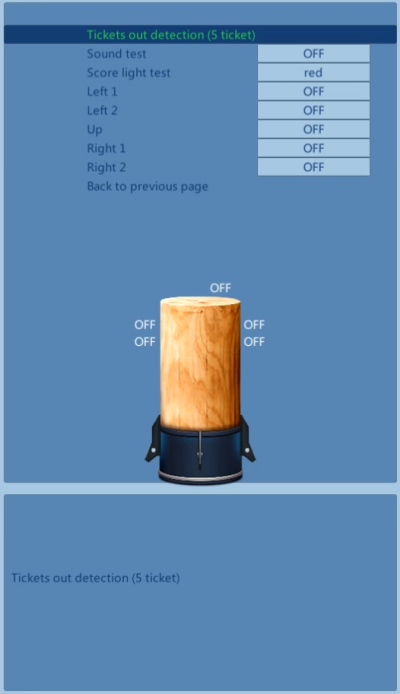

| [Output Detection] |
|---|
| Tickets out detection (5 ticket) |
| Sound test: OFF/ON |
| Score light test: OFF/red/green/blue |
| Left 1: OFF/ON |
| Left 2: OFF/ON |
| Up 1: OFF/ON |
| Up 2: OFF/ON |
| Right 1: OFF/ON |
| Right 2: OFF/ON |
| Back to previous page |

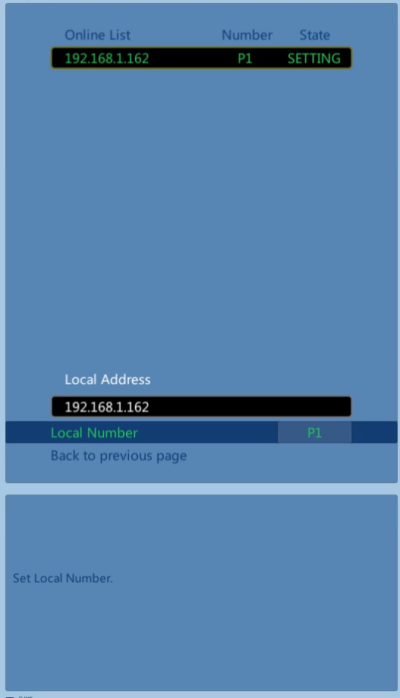

| [Online Test] |
|---|
| Online List |
| Number |
| State（PLAYING/WAITINGS/SETTING） |
Default setting
| 【Game Operation Setting】 | 【Basic Function Setting】 |
|---|---|
| Coins per round (2) | Volume of the game (10) |
| Number of plays(2 times) | Standby music (on) |
| Game time(60seconds) | Save the game cost (on) |
| Ticket out (ON) | Date and Time Setting(set up) |
| Tickets payout setting(5pts/ticket) | |
| Maximum number of tickets payout(100 tickets) | |
| Mercy tickets (20 tickets) |
