Countryside Shooting Range Hunting Arcade Game Machine

Foreword

The shooting range hunting arcade game machine is a brand-new game, with the rhythm from slow to fast, which gives people the feeling of leisure first and excitement later. The game is divided into four levels, shooting different items separately, and there are many forms, such as far to near, near to far, moving to static, static to dynamic, simple to chaotic, etc., which make the training difficult to some extent and have achieved the goal of fun shooting training.

Application range:amusement park、Family entertainment center、game center.

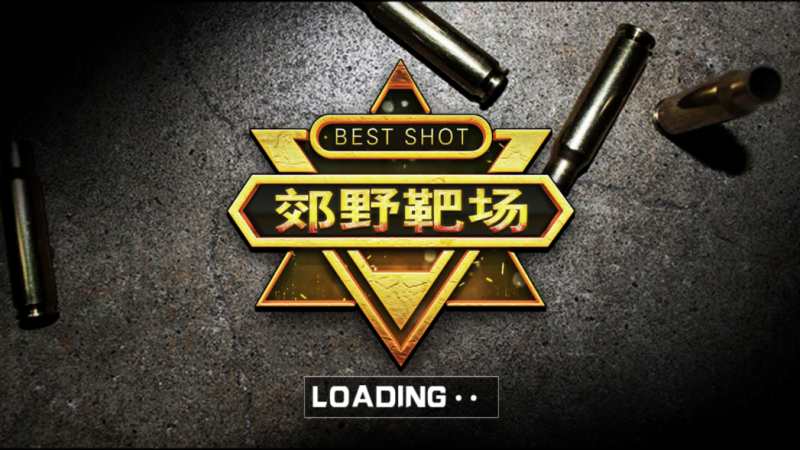

First, the introduction of the game scene, the game is divided into four sections: from simple to difficult.

Best Price Hunting Arcade Game Machine|Buck Hunter Arcade Machine Made In China

2023 Best Arcade Machine Redemption Games Made In China

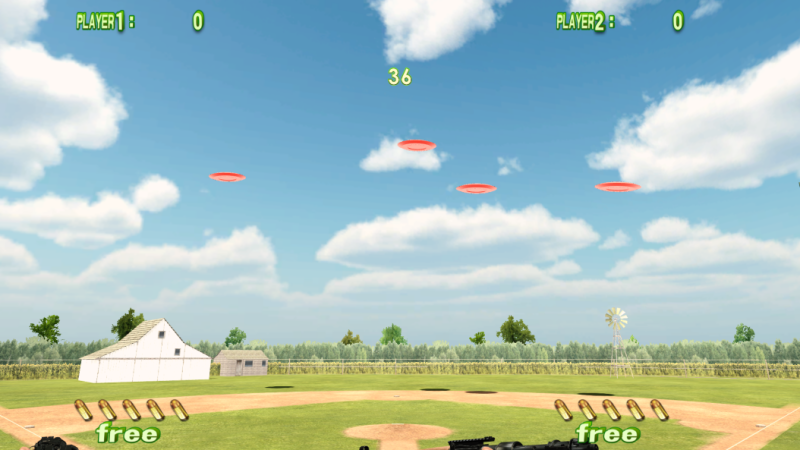

1.UFO shooting

2023 Best Arcade Machine Redemption Games Made In China

Features: When shooting, it is necessary to judge whether the parabolic trajectory of the flying saucer is far to near, and shoot from near to far.

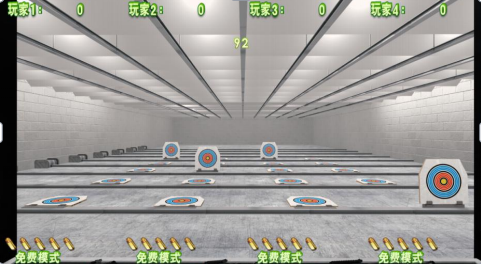

2.Target training

2023 Best Arcade Machine Redemption Games Made In China

Features: When shooting, judge the movement speed and switch of the bull’s-eye, and shoot in time.

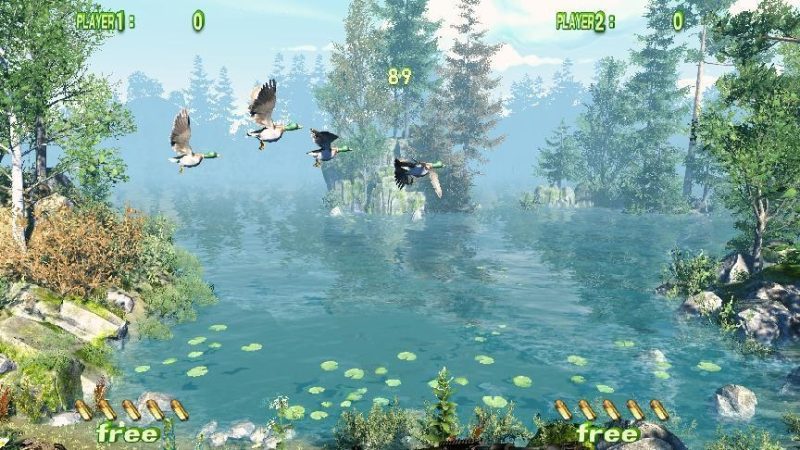

3.Hunting wild ducks

2023 Best Arcade Machine Redemption Games Made In China

Features: When shooting, it is necessary to judge the dynamic changes of wild ducks during flight and shoot them in time.

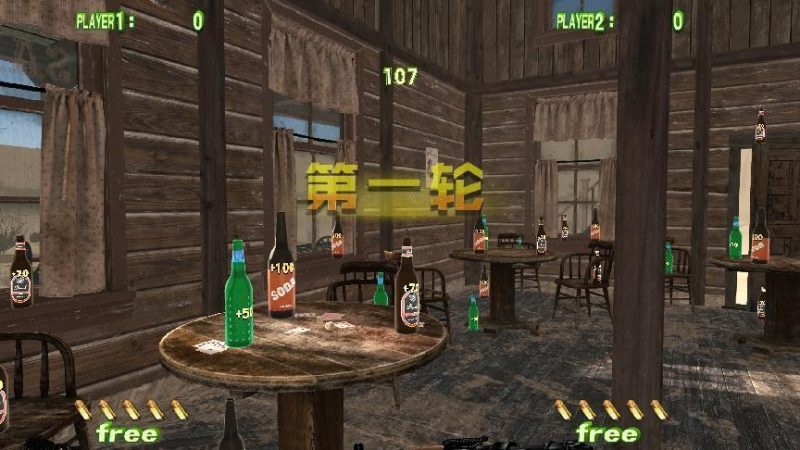

4.Shoot the wine bottle

2023 Best Arcade Machine Redemption Games Made In China

Features: When shooting, judge the swing range of the wine bottle and get the shooting point.

Second, the game score conversion:

1.The target hit in scenes 1~3 is 100 points;

2.In the fourth scene, there are three kinds of bottles with 50 points, 70 points and 100 points. The combo can be multiplied by scores, which is multiplied by 1. several times. For example, 5 combo is 1.5 times and 10 combo is 2 times. ……

Third, the background setting and detection

2023 Best Arcade Machine Redemption Games Made In China

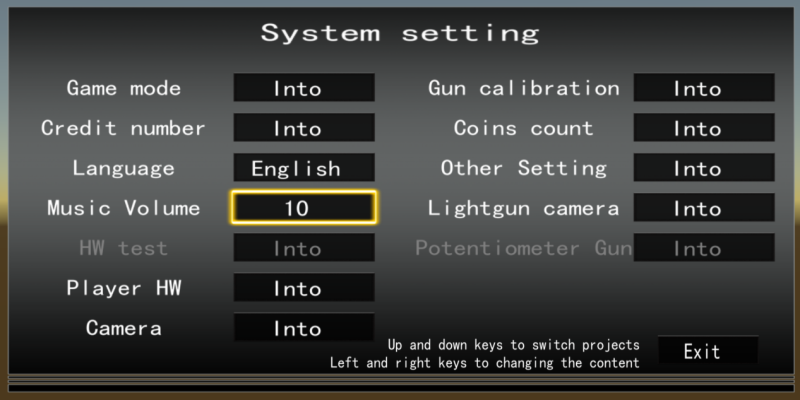

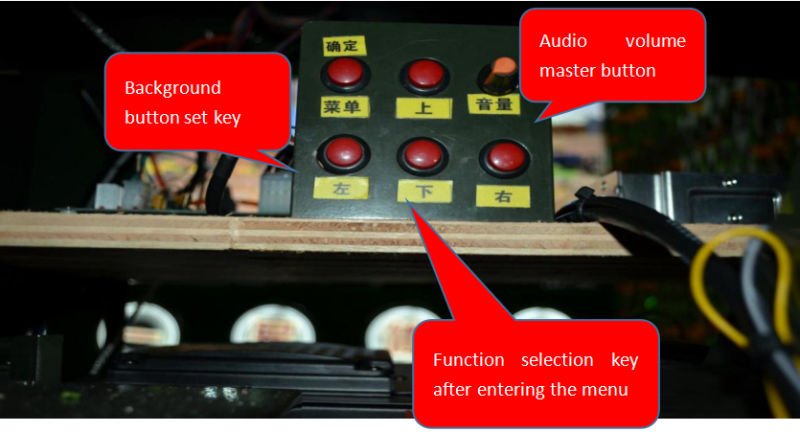

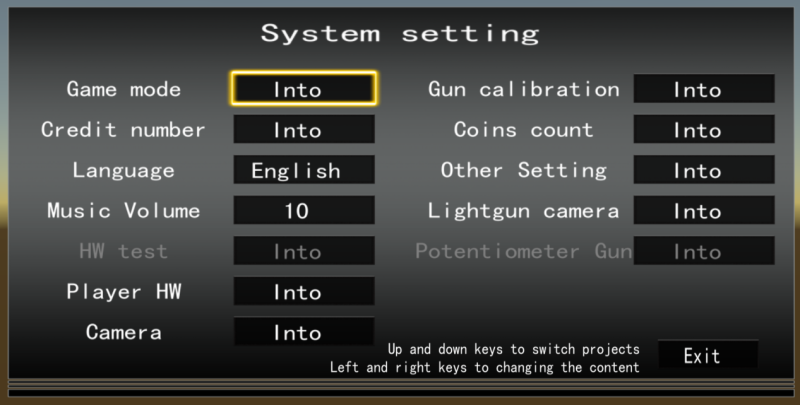

1.Background Settings (all the following functions are adjusted by using the above five keys)

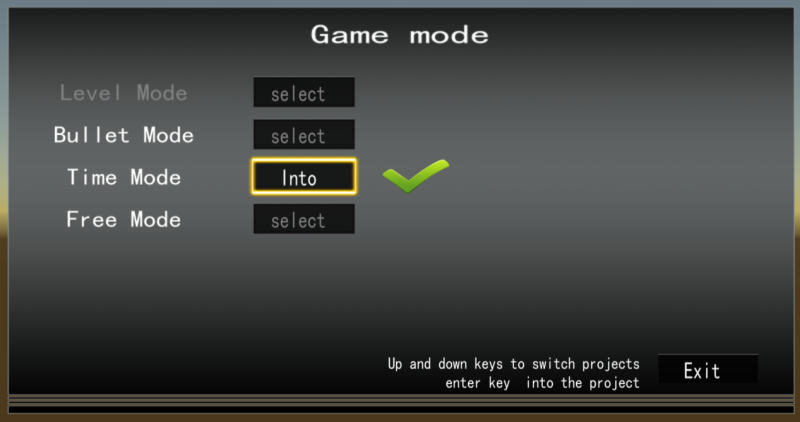

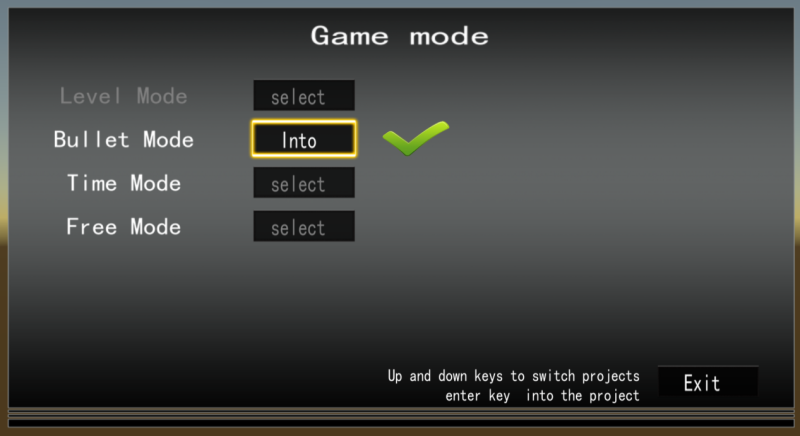

1)Mode setting (press the left and right buttons to adjust, and then press the down button to enter another adjustment after adjusting to the desired mode)

2023 Best Arcade Machine Redemption Games Made In China

Bullet mode: press the menu key to enter the setting. When selecting the game mode, press the menu key to confirm the entry. Press the left and right keys to adjust the number of bullet boxes required. After setting, press the key to “finish” and press the menu key to complete the setting.

For example, the picture below: each round of ammunition 2 boxes, each box time limit of 30 seconds (if you only want to count the number of bullets, do not want to limit, adjust the time to zero).

2023 Best Arcade Machine Redemption Games Made In China2023 Best Arcade Machine Redemption Games Made In China

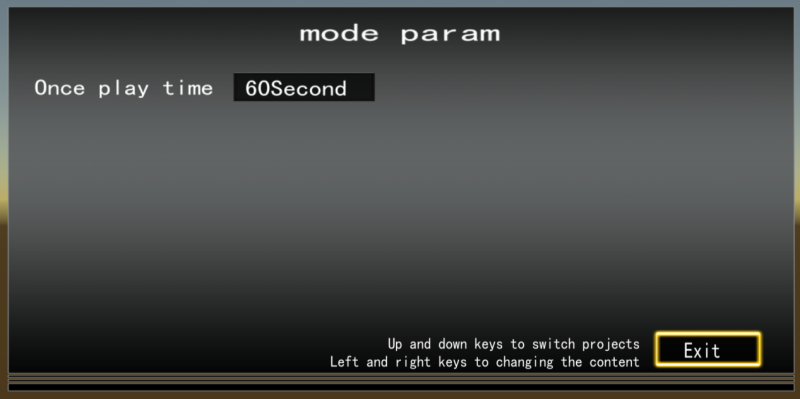

Timing mode: press the menu key to enter the setting, press the button to switch to timing mode, and then press the menu key to adjust the limited time of each round. Press the key to enter the game room adjustment, press the left button minus, press the right button plus. After setting, press the key to “finish” and press the menu key to complete the setting.

For example, you can get 30 seconds per game.

2023 Best Arcade Machine Redemption Games Made In China2023 Best Arcade Machine Redemption Games Made In China

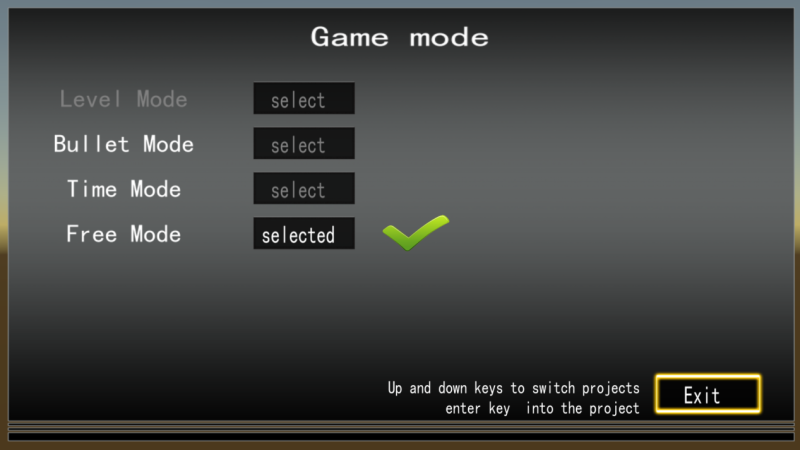

Free mode: select some modes for free game (for exhibition or activity).

2023 Best Arcade Machine Redemption Games Made In China

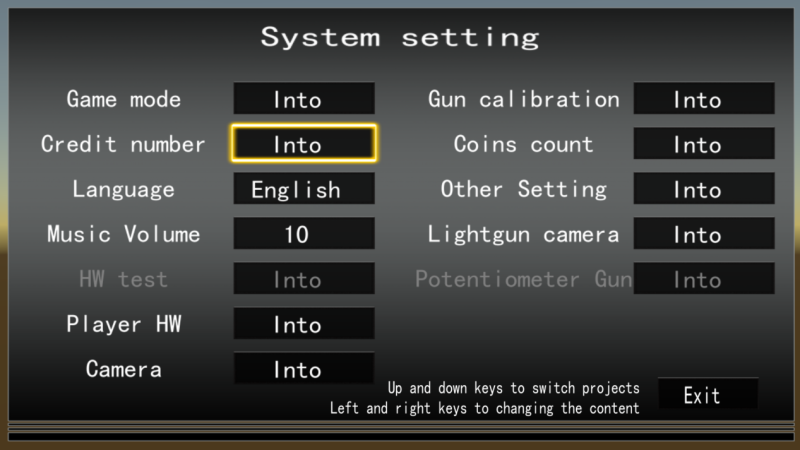

2) adjust the number of COINS in each game (the setting range is1-99COINS).

2023 Best Arcade Machine Redemption Games Made In China

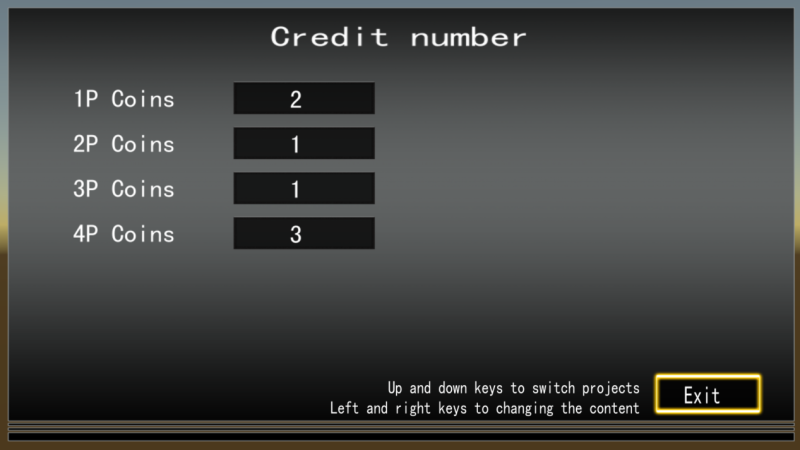

The second generation of games added each gun position can adjust the number of COINS is different, when adjusting the number of COINS in each gun position at the same time, the coin slot with the largest number of COINS is more powerful, the number of COINS in two gun positions is the same, when two gun positions are strong, two gun positions are weak, when four gun positions are the same, the firepower is the same.

2023 Best Arcade Machine Redemption Games Made In China

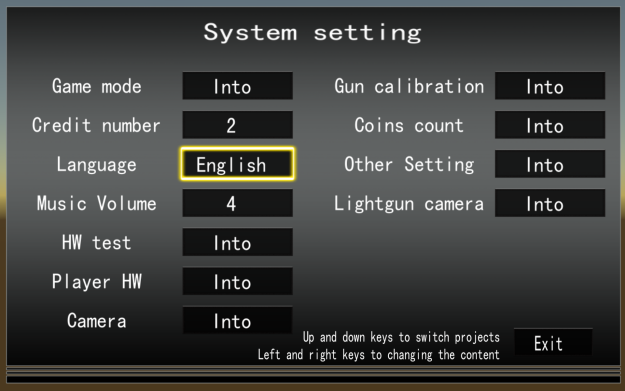

3) language options

2023 Best Arcade Machine Redemption Games Made In China

4) background volume (this is to adjust the volume of background episode of the game.)

2023 Best Arcade Machine Redemption Games Made In China

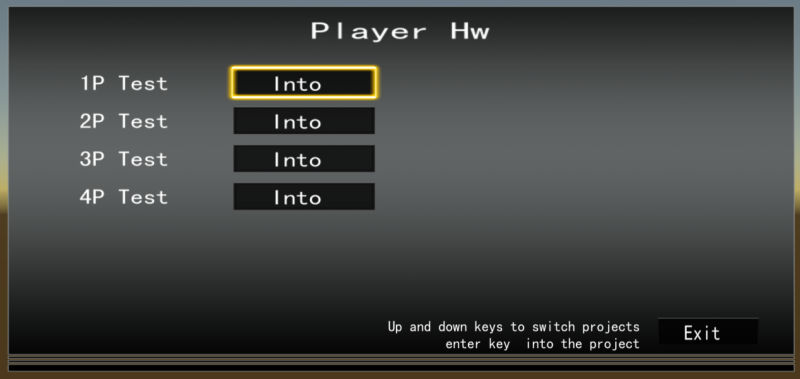

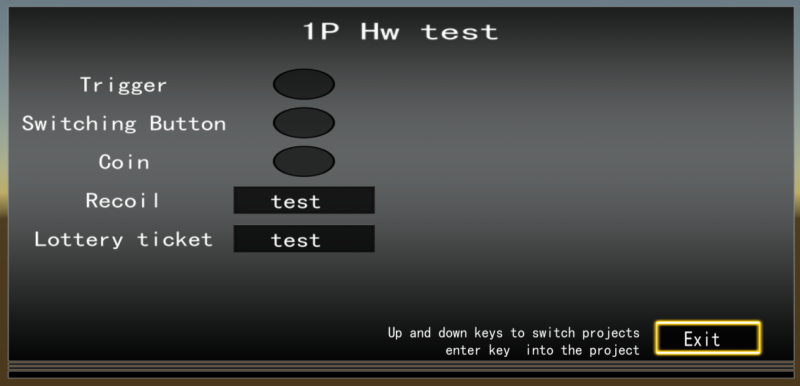

5) player hardware detection (this can detect the working status of each gun in each gun position, as long as the corresponding operation can be carried out after entering)

2023 Best Arcade Machine Redemption Games Made In China

2023 Best Arcade Machine Redemption Games Made In China

2023 Best Arcade Machine Redemption Games Made In China

6) photo side setting (use the left and right keys in the background to move and adjust the best orientation of each photo position)

2023 Best Arcade Machine Redemption Games Made In China

2023 Best Arcade Machine Redemption Games Made In China

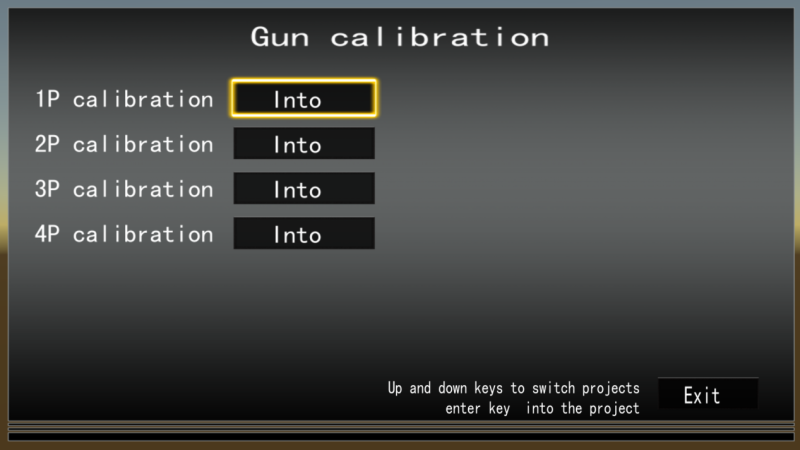

7) the calibration of the gun (generally, the gun is only calibrated when the game counter changes positions and the gun is changed. Under normal circumstances, the gun can be calibrated once after the counter is installed.)

2023 Best Arcade Machine Redemption Games Made In China

2023 Best Arcade Machine Redemption Games Made In China

Note: adjustment of light environment (the gun barrel has a laser head, which will emit infrared ray when working. It will cause problems when working environment is interfered by ultraviolet sunlight, and it is best when the environment is dark.)

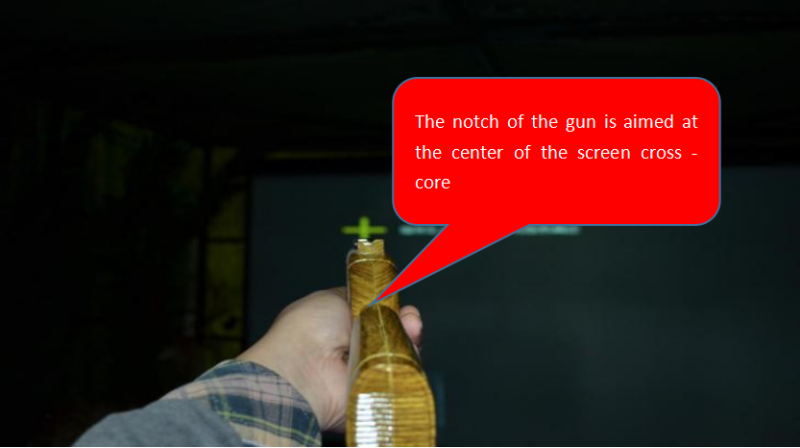

Example: 1P light gun calibration method (aim at the cross yellow center point, form a three-point alignment with the “alignment point” and “aiming point” on the gun, pull the trigger to determine, then aim at the next cross yellow center point, pull the trigger to determine, after completion, automatically save the aiming state, and then to the next P gun calibration)

2023 Best Arcade Machine Redemption Games Made In China

2023 Best Arcade Machine Redemption Games Made In China

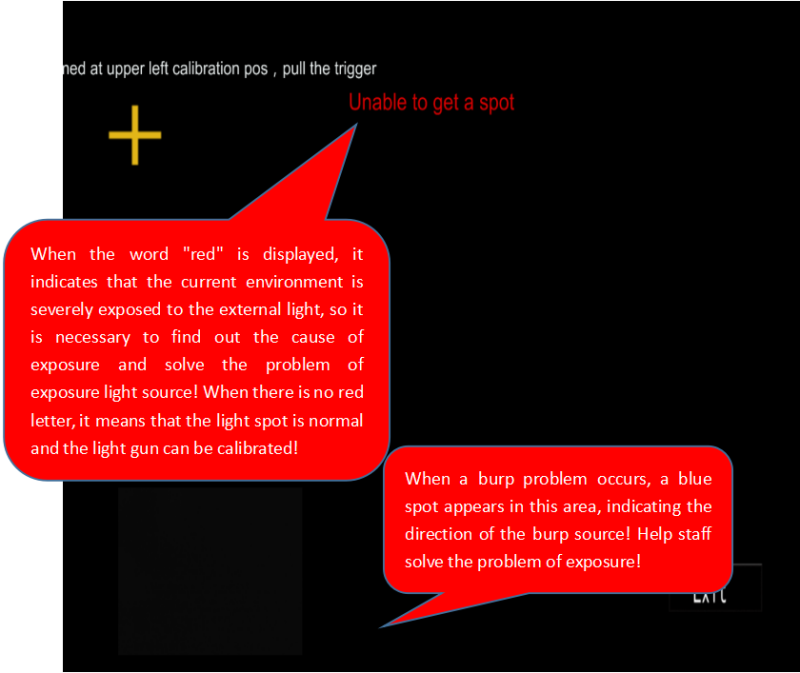

Note: when the school gun, a purple dot appears in the rectangular gray box in the lower left corner, indicating that the laser head of the light gun is working normally (if the dot is white or blue, it indicates that the environment is disturbed and it must be adjusted properly).

2023 Best Arcade Machine Redemption Games Made In China

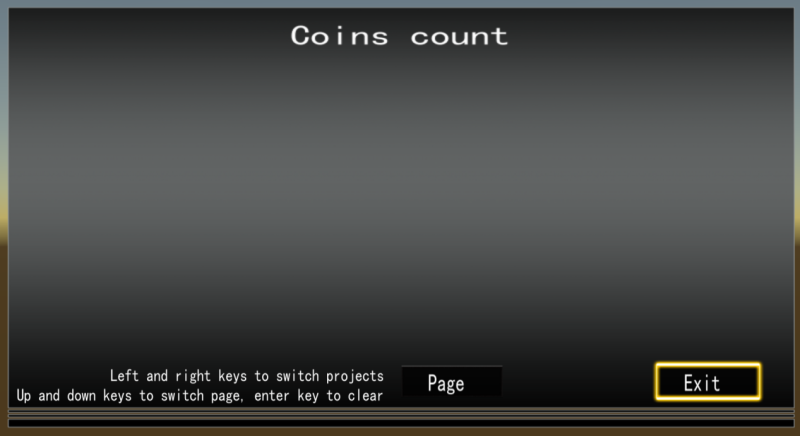

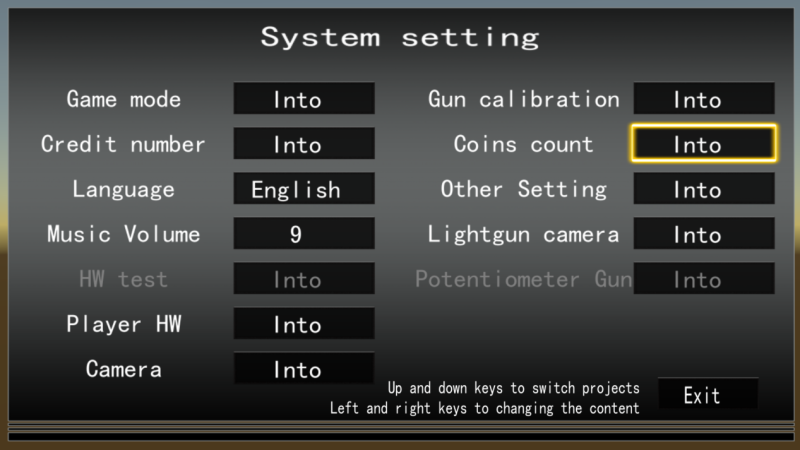

8) currency number statistics (currency number statistics show that the date is consistent with the system date, so the system date should be adjusted before the machine runs)

2023 Best Arcade Machine Redemption Games Made In China

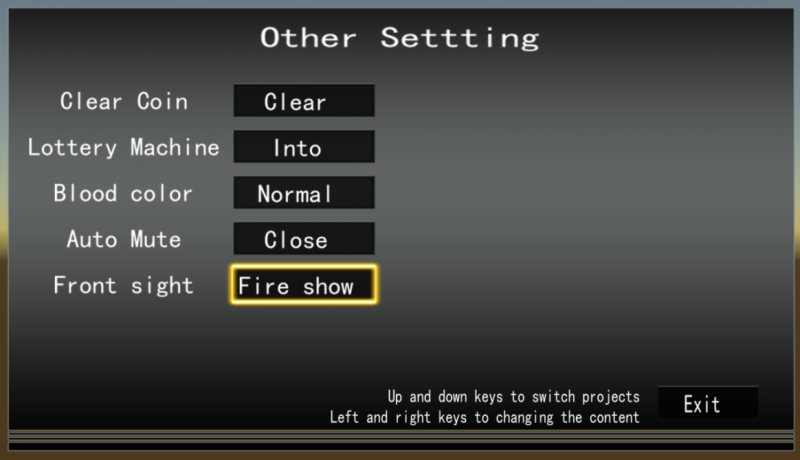

9) other Settings (the number of cleared COINS is the number of cleared COINS in the display area)

2023 Best Arcade Machine Redemption Games Made In China

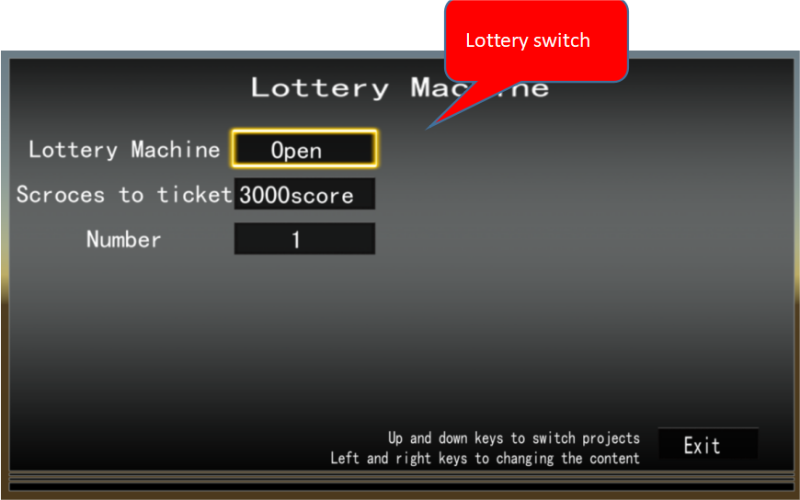

Lottery machine (you can adjust how many tickets are allocated)

2023 Best Arcade Machine Redemption Games Made In China

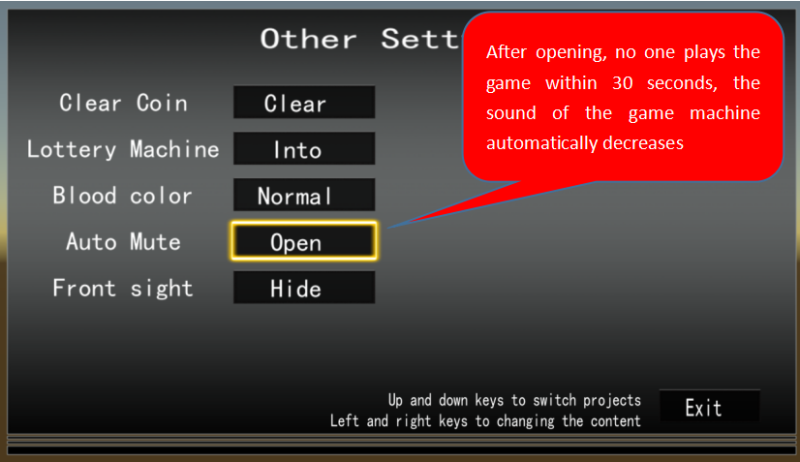

The second generation of other Settings to increase the alignment adjustment items, the corresponding adjustment items can reflect the players buckle the board appeared when the alignment state.

2023 Best Arcade Machine Redemption Games Made In China

10) adjustment steps of the light gun camera (if the machine has not been moved or the camera has not been replaced, it is generally not necessary to adjust, but it can be adjusted once during installation).

2023 Best Arcade Machine Redemption Games Made In China

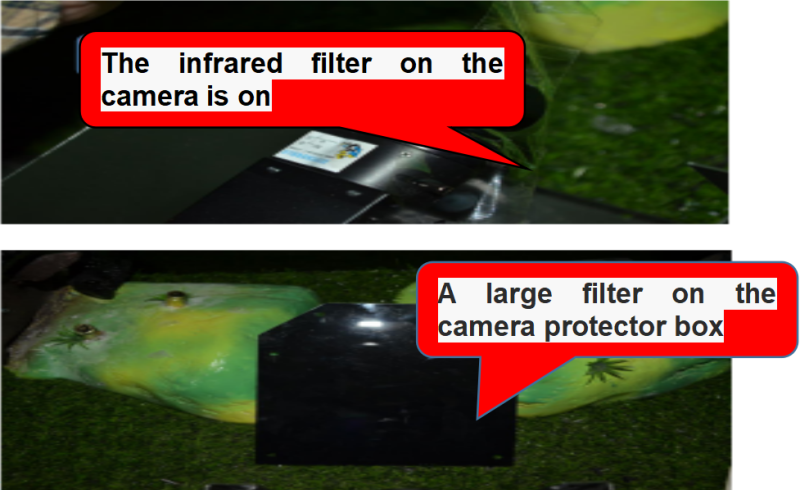

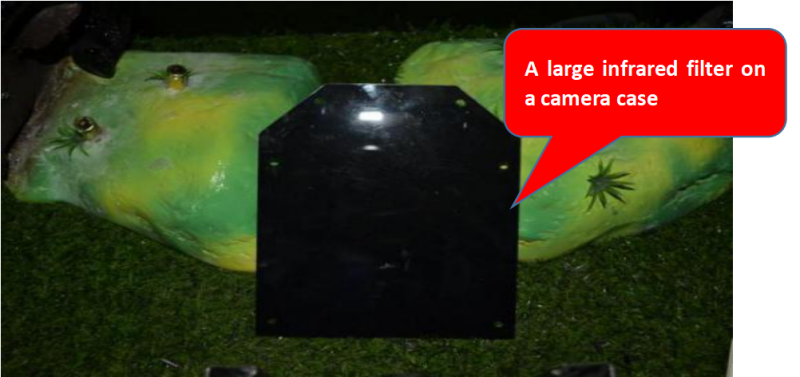

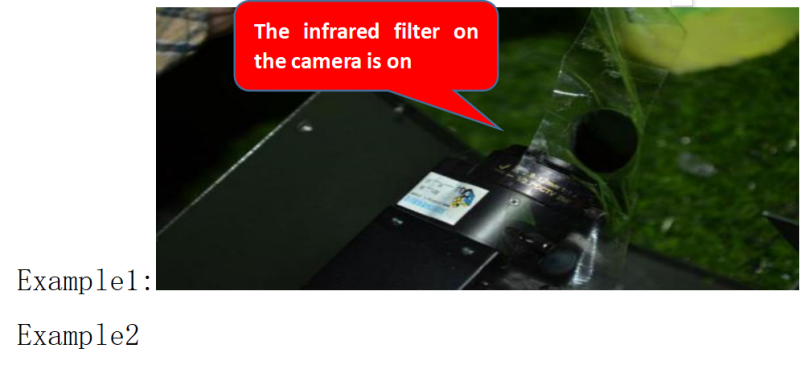

Step 1: remove the infrared filter

2023 Best Arcade Machine Redemption Games Made In China

2023 Best Arcade Machine Redemption Games Made In China

 2> step 2: adjust the light gun camera’s imaging ratio (adjust the camera so that the image is just across the entire screen and the border of the screen). The camera is aligned and focused so that the image is clearest.

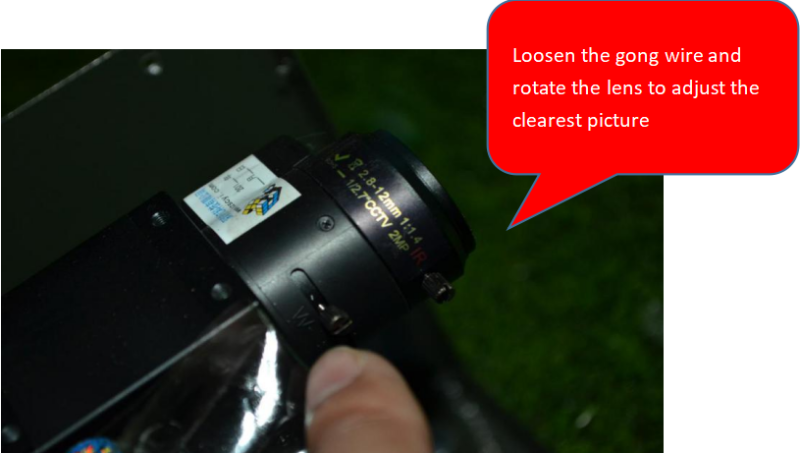

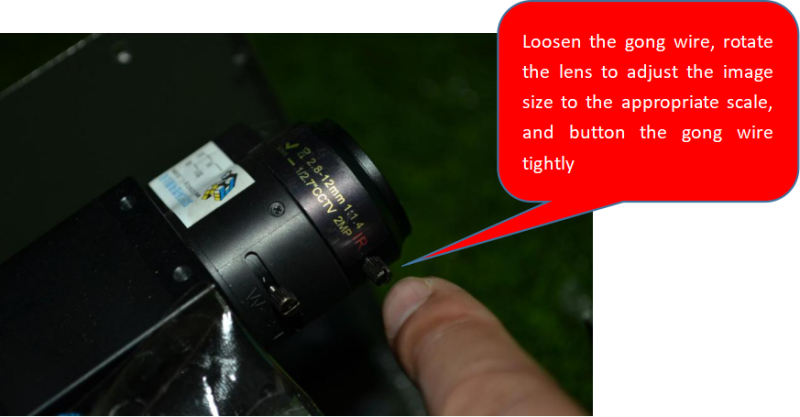

3> step 3: image size adjustment (rotate the lens first round and adjust the image size to the appropriate scale)

2023 Best Arcade Machine Redemption Games Made In China

2023 Best Arcade Machine Redemption Games Made In China

4>step 4: adjust image definition

2023 Best Arcade Machine Redemption Games Made In China

Note: the above two steps should be adjusted with each other, and the gong wire button should be tightened after adjusting the lens (the above operation can be completed directly by hand).

5> step 5: remember to cover the infrared filter after the adjustment is completed, and the adjustment of the light gun is basically completed!

2023 Best Arcade Machine Redemption Games Made In China

Hardware wiring diagram

1.Description of gun plate

2023 Best Arcade Machine Redemption Games Made In China

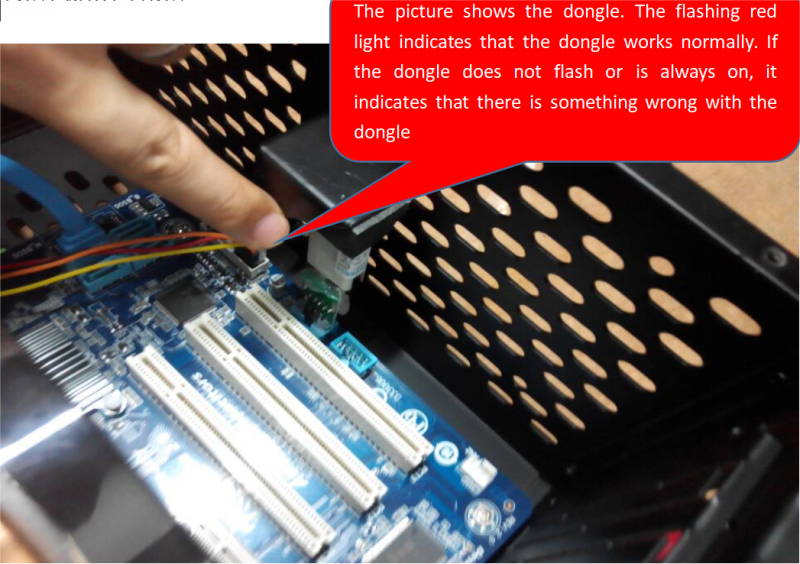

2.encryption dog instructions

2023 Best Arcade Machine Redemption Games Made In China

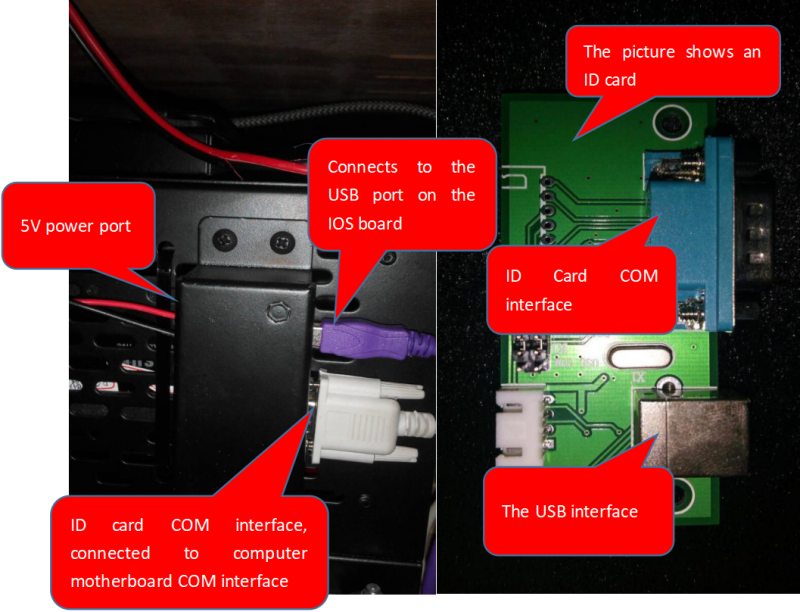

3.ID card description:

2023 Best Arcade Machine Redemption Games Made In China

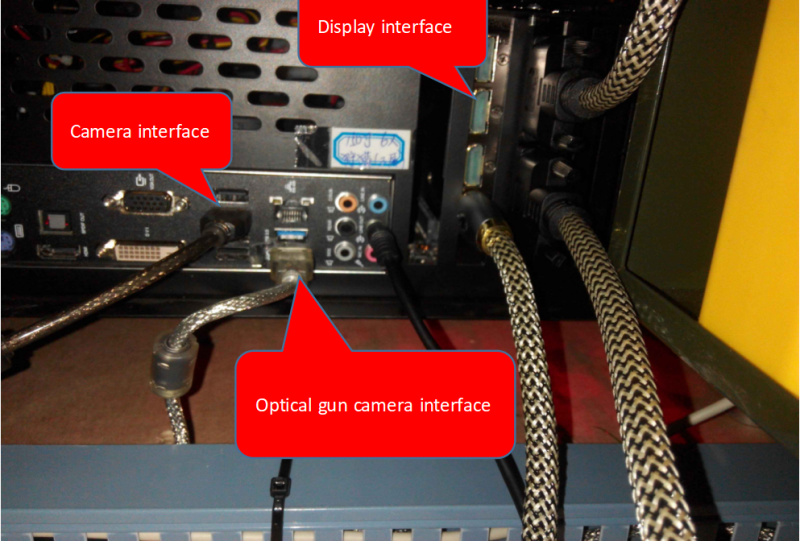

4.Wiring instructions of main engine

2023 Best Arcade Machine Redemption Games Made In China

Note: it is better not to connect the camera camera USB port and the light gun camera USB port to the same row of USB ports!

Description of common faults

1.The number of bullets will disappear on its own – go into the background and set the time limit in bullet mode to zero.

2.Cannot enter the game — please check whether the ID card or dongle in item 3 of article 8 works properly.

3.The gun can not be fired or the bullet can not be fired — enter the background to re-check the gun. If not, please check whether the light gun or potentiometer is normal.

4.No one is available for taking photos — please enter the camera item in the background for alignment correction.

5.There is no sound in the game – please check the sound or smart mute to see if it is turned on.

6.The function of the gun is not good — please enter the player’s hardware detection, see what function the corresponding gun has no response, check the corresponding item.

7.Just changed the game mode a little bit different – turn off the power to restart the machine to try.

8.The graphics are stuck there — check the heat coming out of the console, check the graphics, and restart the machine.
