• Working voltage: AC110V 60Hz or AC220V 50Hz(Please refer to the machine nameplate for the specific voltage used)
•  Weight: about 350Kg
• Minimum power: 350W, maximum power: 700W (peak)
• Environmental conditions: Temperature: -10℃～+40℃ (indoor)Humidity: ≤90%, atmospheric pressure: 86Kpa～106Kpa
• Machine number: T-026
• Dimensions: W1690×D1220×H2520mm
• Application range:amusement park、Family entertainment center、 arcade game center 、shopping mall

More info about the shape and outside look please check as below video:

• Insert the coin to get the game play time.
• Selected the best timing to press the button down the ball.
• If the ball come into the basket, the player will get 3 extra ball.
• The player will get different tickets base on the different color which the ball come into.
• Time up, game over.

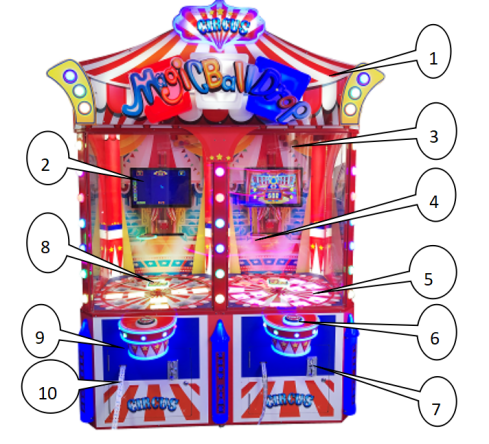

(1). Light box: for decoration.

(2). LCD screen: Displays the gameplay.

(3). Ball drop mechanism: save the ball.

(4). Middle 3 balls mechanism: moving mechanism, detecting the middle 3 balls multiple infrared.

(5). Turntable: used to detect the score of the ball.

(6). Button: for putting the ball.

(7). Coin-operated device: Play the game after putting in the game tokens.

(8). JP Awards Agency: used for the JP Awards.

(9). Front door: withdraw coins, exchange lottery tickets, etc.

(10). Lottery port: used for lottery tickets.

In order for you to use this redemption game machine correctly, please carefully check whether the following items are available after opening the box.

(1) 1 machine.

(2) A set of maintenance parts, the list is as follows:

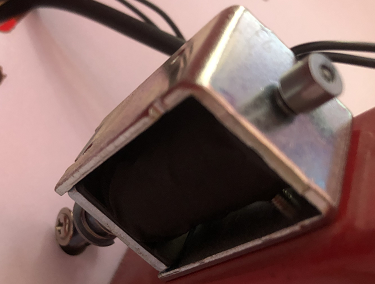

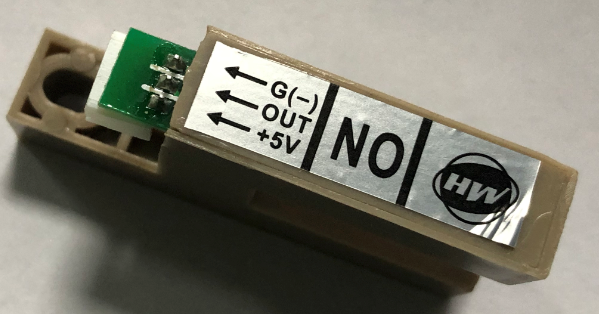

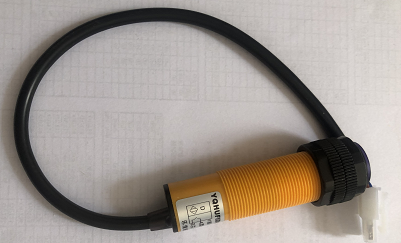

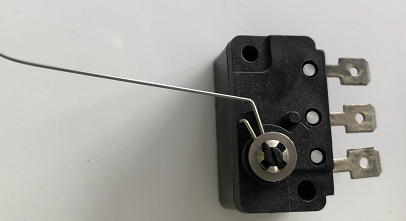

Note: The above accessories are subject to adjustment without prior notice.

(1)Arcade Ball Drop Game Placement method

1)This machine is only suitable for indoor use, not for outdoor use.

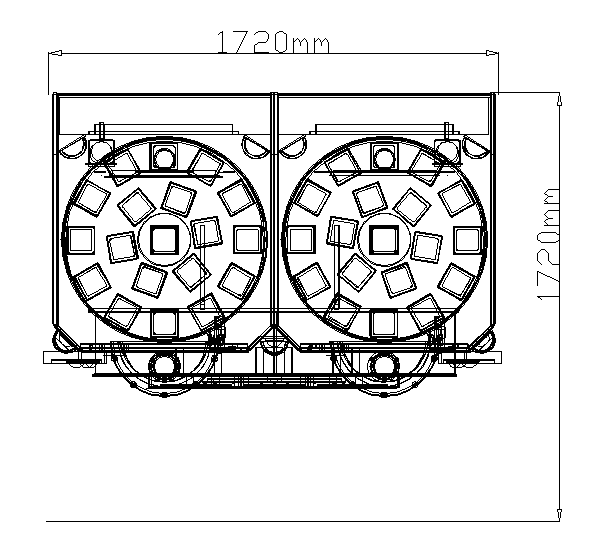

2)Placement range size:The space requirements for placing the machine are shown in the figure below.

(3)Notice:

1). The machine should not be placed in an inclined position, which may cause accidents.

2). Do not use the machine in the following places:

*It will cause the machine to produce condensation or condensation places with high humidity;

*In the vicinity of high-humidity objects;

*Near dangerous goods;

*In smooth or uneven places;

*Near spark-prone equipment;

*In places with severe vibration;

*In dusty environments;

3)The drop ball arcade game machine must check the tightness of the fixing screws of each mechanism and accessories once every 3 months! ! !

(2).Drop Ball Arcade Game Machine Fixation method

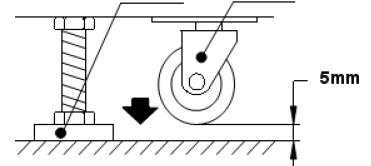

The machine must be placed on a flat and solid ground. When fixing the machine, rotate the top foot of the machine down, keep the casters about 5mm off the ground, and keep the machine in a horizontal state.

(3).Drop Ball Arcade Game Handling method

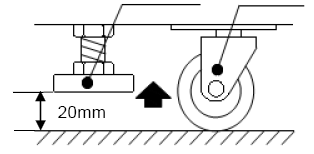

When the machine is being transported for a short distance, firstly rotate the top foot of the machine so that the top foot is 20mm off the ground and the casters touch the ground, and then slowly push from the front or rear end of the machine to prevent tipping.

1.Turn off the power and unplug the power cord before moving.

2.If the casters cannot be moved when moving, please confirm whether the casters are locked. If not, replace the casters.

3.Random artificial movement, overturning, transportation, etc. will damage the equipment and damage the performance of the machine.

5.Confirm that the requirements of the manufacturer must be met during the process of moving, flipping, and transportation.

(1)Wiring method

Connect one end of the power cord to the connection of the machine’s power cord box (as shown in the figure), and then connect the other end of the power cord to the power socket (as shown in the figure), and confirm that the power supply meets the requirements of the machine nameplate before connecting. Turn on the power switch.

The working voltage of this machine is: 110V/60Hz or 220V/50Hz. Please connect to the corresponding power supply according to the voltage marked on the nameplate of the machine, otherwise the machine will be damaged.

(2)Fuse parameters

110V/60Hz:125V/20A  φ5-20mm

220V/50Hz:250V/10A  φ5-20mm

(3)Matters needing attention when turning on and off

1). Check the parameters of the power supply voltage to ensure that the electrical parameters of the machine are consistent with the requirements of the machine, otherwise it may burn out the machine or cause a fire.

2). Connecting too many wires to the same power socket may cause the terminal to overheat and cause a fire.

The power cord cannot be pressed by heavy objects, which will damage the wire and easily lead to a short circuit, which may cause a fire in severe cases.

When unplugging the power cord from the socket, it should be pulled out by grasping the plug, not the cord.

Do not pull out the plug directly with wet hands.

Do not forcefully stretch or twist the power cord, and do not expose the power cord near high-temperature objects.

The power cord must not be easily kicked or touched.

Use correct voltage and fuse (refer to technical data).

Safety inspection before machine use

To ensure the safety of the machine, be sure to check the following points before turning on the machine:

1)Whether the connected power parameters are consistent with the machine;

2)Whether the warning signs on the machine are clearly visible;

3)Whether the machine is placed smoothly, and whether the adjustment of casters and top feet is appropriate;

4)Whether the area where the machine is placed is suitable;

Install and debugging

1)Before installation, please check the parts according to the list and assemble the parts;

2)The site used must be flat and firm. After the machine is placed, adjust the feet to the ground level and fix it;

3)After installation, plug in the power cord and start the machine to check whether all parts of the machine are operating normally.

Maintenance

1)Before opening every day, the test machine should be tested before it can be used normally;

2)When there is dirt and dust on the machine, use a soft cotton cloth to apply a neutral detergent to wipe it clean;

3)After the new machine runs for one month, it is necessary to check whether all parts are normal.

4)Always check and maintain the machine.

In order to ensure the safe use of this product, please read the following clauses before using this product. The following provisions are suitable for users, maintenance personnel, and equipment supervisors. After reading these articles carefully, set up the product as instructed, and refer to these articles whenever necessary.

1.The power must be turned off when maintaining and repairing the machine.

In order to avoid short circuit, the relevant personnel should turn off the power before touching the internal parts of the machine. If this operation requires power on, it must comply with the requirements of the operating instructions.

2.When replacing the device, make sure to select the appropriate accessories.

Using incorrect accessories can cause fire or electrical short circuit, and damage the motherboard and components.

3.Do not disassemble, assemble or modify the equipment at will.

This can lead to fire or electrical short circuit, mechanical failure, etc.

4.Confirm that the moving, flipping, transportation, etc. must meet the manufacturer’s requirements.

Random artificial movement, overturning, transportation, etc. will damage the equipment and destroy the mechanical properties.

5.This arcade ball drop game machine is suitable for indoor use, not for outdoor use.

Outdoor use can affect the performance of the machine.

6.Do not use the ball drop arcade machine in the following places:

(1) Places with water leakage or high humidity.

(2) Places close to high temperature objects.

(3) Places close to dangerous goods.

(4) Smooth or unstable places.

(5) Approaching equipment that is prone to sparks.

(6) Places with severe vibration.

7.Do not place vases, cups, containers, etc. with water on the machine, and do not place chemicals and heavy objects on the machine.

Spilled liquids can cause electrical short-circuits to damage devices, chemicals can corrode machines, and falling objects can damage human bodies and damage machines.

8.Do not place objects in the exhaust port of the machine.

Blocking the exhaust port will cause the temperature of the machine to rise, which will affect the normal operation of the machine and damage the components.

9.The power cord cannot be pressed by heavy objects.

This can damage the wires, causing short circuits and fires.

10.When pulling out the power cord from the socket, grab the plug and pull out, not the wire.

This can damage the wires, causing short circuits and fires.

11.Do not pull out the plug directly with wet hands.

Otherwise, it will cause electric shock and hurt the human body.

12.Do not forcefully stretch, twist, or fold the power cord, and do not expose the power cord near high-temperature objects.

All of the above will damage the wires, causing short circuits and fires.

13.The power cord cannot be easily kicked or touched.

Doing so will injure the human body and damage the machine.

14.Use the correct voltage and fuse (see technical data).

Using other standard voltages will cause short circuits and fires, and using unqualified fuses will damage the machine and cause fires.

15.Non-professionals cannot repair the machine at will.

This can cause malfunctions such as fire or uncontrolled operation.
