Arcade Card System Feature:

  • Wireless connection ;
  • Wire cutless installation:
  • Colorful status light
  • Tap card to start
  • Support Token
  • 1.4inches LCD Display

Parameter:

  • Size :6X 7 X3.45(cm)
  • Power:12v DC 1A Max
Cashless Card Arcade System Arcade Carder Reader|Swipe Card System For Family Eentertainment Center
SMART PAY K2

How to install card reader on arcade/how to test a credit card reader on arcade game

  • Open the package, and find two part of the card reader, wire and the reader.

Cashless Card Arcade System Arcade Carder Reader|Swipe Card System For Family Eentertainment Center

  • the reader can be take apart into two pcs, bottom and the cover

Cashless Card Arcade System Arcade Carder Reader|Swipe Card System For Family Eentertainment Center

  • Fixed the bottom on the machine by screws, and need to drill a hole of 10mm -18mm for the wire connecting.

Cashless Card Arcade System Arcade Carder Reader|Swipe Card System For Family Eentertainment Center

  • Connect the wire to the reader.

Cashless Card Arcade System Arcade Carder Reader|Swipe Card System For Family Eentertainment Center

  • fixed the cover to the bottom.

Cashless Card Arcade System Arcade Carder Reader|Swipe Card System For Family Eentertainment Center

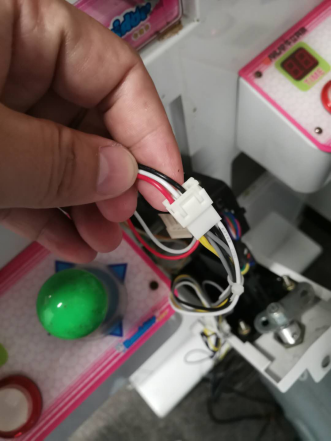

  • Find the connector of coin selector, normally it is 4pins or 6pins,

Cashless Card Arcade System Arcade Carder Reader|Swipe Card System For Family Eentertainment Center

  • Find the 4pins and 6 pins connectors, choose the suitable one to connect the connector of coin selector

Cashless Card Arcade System Arcade Carder Reader|Swipe Card System For Family Eentertainment Center

  • Connect as below.

K2 Arard System Card

  • Find the connector 4pins and 6pins, choose the suitable for the coins selector

Cashless Card Arcade System Arcade Carder Reader|Swipe Card System For Family Eentertainment Center

  • Connect as below

Cashless Card Arcade System Arcade Carder Reader|Swipe Card System For Family Eentertainment Center

  • After finish the installation, power on the machine and the card reader
